10MG560K

Overview

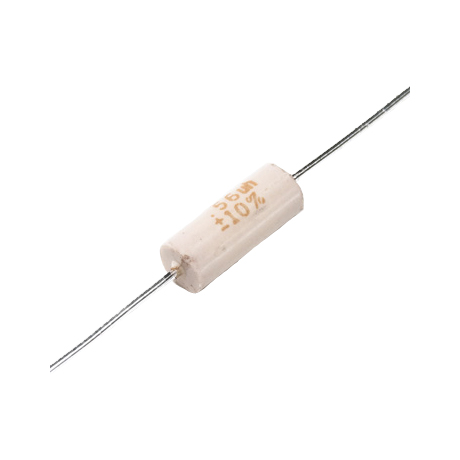

The Gowanda Electronics 10MG560K is a fixed inductor with an inductance of 560 nH. It features a molded, non-magnetic construction and axial leads for through-hole mounting. The component has a maximum DC resistance of 500 mOhm and a current rating of 545 mA. Its physical dimensions are 6.35 mm in length by 2.413 mm in diameter.

Feature Summary

• Non-magnetic molded construction suitable for sensitive environments
• Axial lead configuration for standard through-hole integration
• Compact form factor designed for high-frequency circuit applications

Applications

• Medical electronic equipment
• Aerospace systems
• Defense electronics
• RF circuits

Procurement Notes

Verify the specific suffix against official Gowanda documentation to confirm material composition and tolerance specifications. Ensure the procurement channel provides valid manufacturer traceability. Confirm that the axial lead style matches the target PCB layout requirements before finalizing orders.

Selection Notes

Select this component when a compact, non-magnetic inductor is required for medical or aerospace applications. The 560 nH value and 545 mA rating define the electrical constraints. Verify that the 500 mOhm DC resistance fits the power loss budget of the design.

Part Context

This part belongs to Gowanda Electronics' line of high-performance fixed inductors. The company specializes in custom magnetics for demanding sectors including defense and medical fields. The 10MG series utilizes non-magnetic materials to prevent interference in sensitive signal paths.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 560 nH inductance, 545 mA current rating, and axial package dimensions with alternative manufacturers.
