10MG820K

Overview

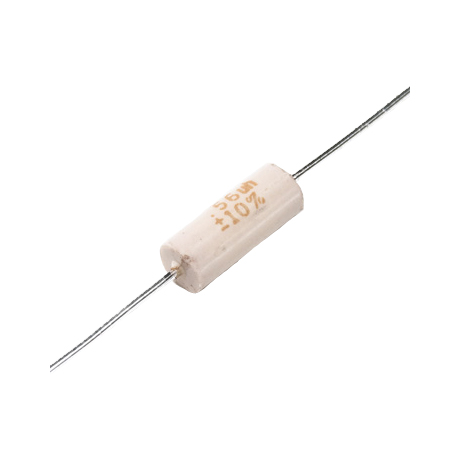

The 10MG820K is a fixed inductor manufactured by Gowanda Electronics Corporation. It features an unshielded molded construction with axial leads. The component has an inductance of 820 nH and a maximum DC resistance of 850 mOhm. Its rated current is 415 mA, and it operates up to a self-resonant frequency of 250 MHz. The physical dimensions are 6.35 mm in length with a diameter of 2.413 mm, weighing approximately 0.3 grams.

Feature Summary

• Non-magnetic construction suitable for sensitive environments
• Unshielded molded design for compact integration
• Axial lead configuration for through-hole mounting

Applications

• Medical imaging systems
• Telecommunications equipment
• Security systems

Procurement Notes

Verify the specific manufacturer datasheet for the 10MG820K to confirm current availability status and exact electrical tolerances. Ensure that the axial lead spacing and package dimensions match the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when non-magnetic properties are critical to prevent interference in adjacent circuitry. The unshielded nature requires consideration of electromagnetic compatibility within the assembly. Verify that the 415 mA current rating meets the operational load requirements of the specific application circuit.

Part Context

Gowanda Electronics specializes in high-performance inductors and custom magnetics for aerospace, defense, and medical sectors. The 10MG820K belongs to their series of precision electronic components designed for RF and power applications where magnetic neutrality is required.

Replacement Considerations

The 10MG820KLF is a variant from the same manufacturer with identical electrical specifications but potentially different packaging or termination details. Cross-reference official Gowanda documentation to confirm interchangeability.
