10MV1

Overview

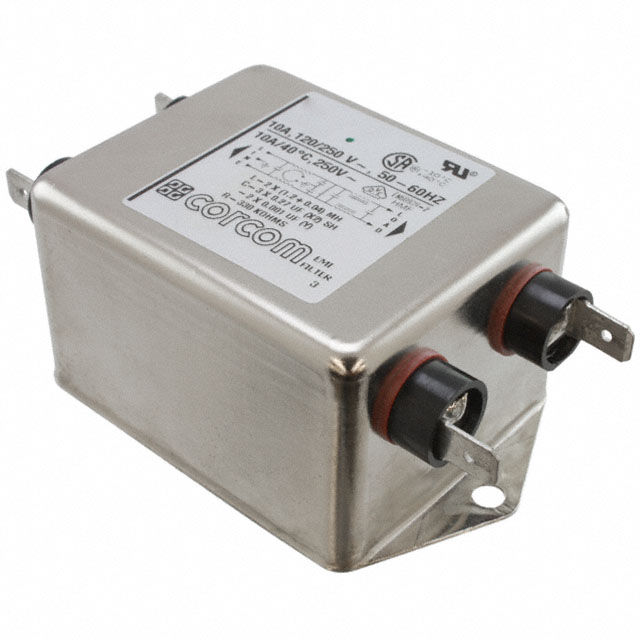

The TE Connectivity Corcom Filters 10MV1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated AC voltage of 250V and handles a continuous current of 10A at operating frequencies of 50Hz and 60Hz. The component utilizes a two-stage configuration to provide effective noise suppression. Electrical connections are established via quick connect terminals, facilitating integration into power entry modules.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with quick connect termination style
• Certified for international safety standards including CSA, UR, and VDE

Applications

• Industrial machinery power supplies
• Medical equipment power entry modules
• General purpose electronic systems requiring EMI/RFI mitigation

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the quick connect terminal dimensions match the mating connector specifications. Check for any recent product change notices or obsolescence announcements prior to finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 250VAC applications. Ensure the chassis mounting footprint aligns with the enclosure design. Verify that the 10A current rating meets the load requirements and that the quick connect interface is suitable for the wiring harness.

Part Context

This component belongs to the Corcom MV series of line filters. It is manufactured by TE Connectivity Corcom Filters. The part is identified by the manufacturer number 10MV1 and is also referenced by aliases such as CCM1642-ND and 6609056-3 in distributor catalogs.

Replacement Considerations

FN2080A-10-06 from TE Connectivity Schaffner is listed as a similar substitute part.
