Product Detailed Parameters
- Description：LINE FILTER 440VAC 10A CHASS MNT
- Series：TD
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：L1 - 122µH, L2 - 2.8mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

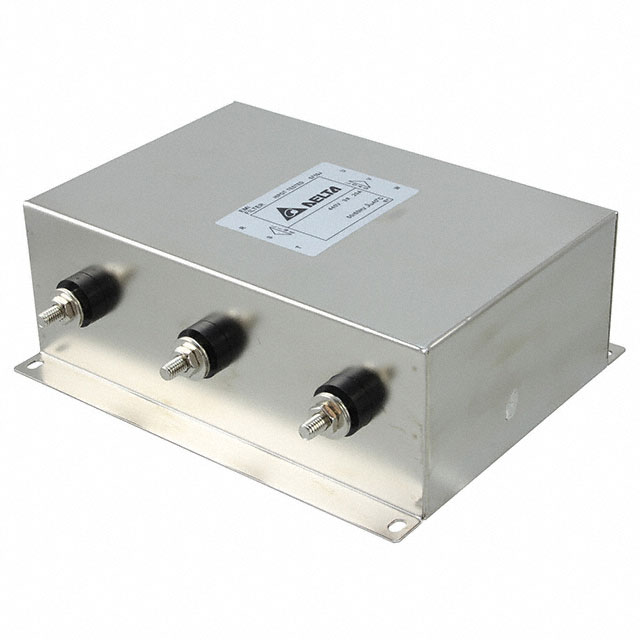

The Delta Electronics 10TDS6D is a three-phase, three-wire power line filter designed for chassis mounting. It features a rated AC voltage of 440VAC and a current rating of 10A. The unit utilizes threaded posts (M6) for termination and is housed in a box package. This component serves as an electromagnetic interference suppression device for industrial electrical systems.
Feature Summary
- Provides three-phase filtering for three-wire configurations
- Engineered for direct chassis mounting applications
- Utilizes M6 threaded post connections for secure installation
Applications
- Industrial power distribution units
- Electrical control cabinets
- Three-phase motor drive systems
Procurement Notes
Verify the specific part number 10TDS6D against official Delta Electronics documentation to confirm compatibility with your system's voltage and current requirements. Ensure that the M6 threaded post termination matches your existing busbar or wiring infrastructure. Cross-reference the datasheet for environmental operating limits before procurement.
Selection Notes
Select this filter based on the requirement for three-phase, three-wire EMI suppression at 440VAC. Confirm that the 10A current rating aligns with the load specifications. Verify physical space constraints for chassis mounting and ensure access for M6 terminal connections. Validate insulation and safety ratings against local regulatory standards.
Part Context
This component belongs to Delta Electronics' range of passive electromagnetic interference filters. These devices are typically integrated into industrial power electronics to mitigate conducted noise. The 10TDS6D specifically addresses three-phase applications, distinguishing it from single-phase counterparts within the manufacturer's portfolio.
