10TYG9

Overview

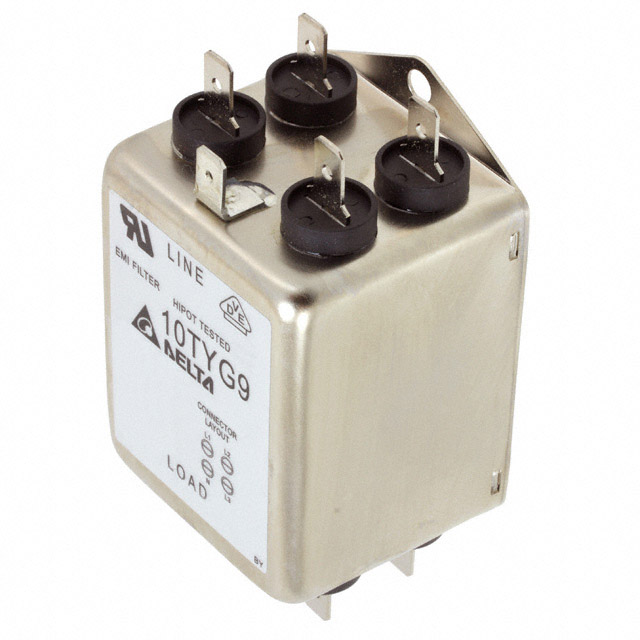

The Delta Electronics 10TYG9 is a compact three-phase (Wye) EMC/EMI power line filter designed for industrial applications. It supports a rated current of 10 A and operates at voltages up to 440 VAC across 50 Hz and 60 Hz frequencies. The unit utilizes a chassis mount configuration with quick-connect lug terminals, ensuring secure installation in control panels. This single-stage filter provides effective noise suppression for three-phase four-wire systems.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Features a compact chassis-mount design for space-constrained enclosures
• Utilizes quick-connect lug terminals for simplified wiring

Applications

• Industrial machinery power input stages
• Three-phase motor drive systems
• Factory automation control panels

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the quick-connect lug dimensions match your existing terminal blocks. Ensure the 10A current rating aligns with your system's maximum load requirements. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this model when a dedicated three-phase solution is required rather than individual single-phase filters. The 10A rating suits moderate-load industrial equipment. Consider the chassis mounting style if panel space allows for direct screw-down installation. Verify that the 440VAC rating covers your network voltage peaks.

Part Context

This component belongs to Delta Electronics' series of compact power line filters. These units are engineered to meet standard EMC requirements for electronic equipment. The product line focuses on providing reliable noise attenuation for sensitive industrial electronics while maintaining low insertion loss.

Replacement Considerations

Consult official Delta Electronics documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers without verifying electrical parameters and physical dimensions.
