10VB1

Overview

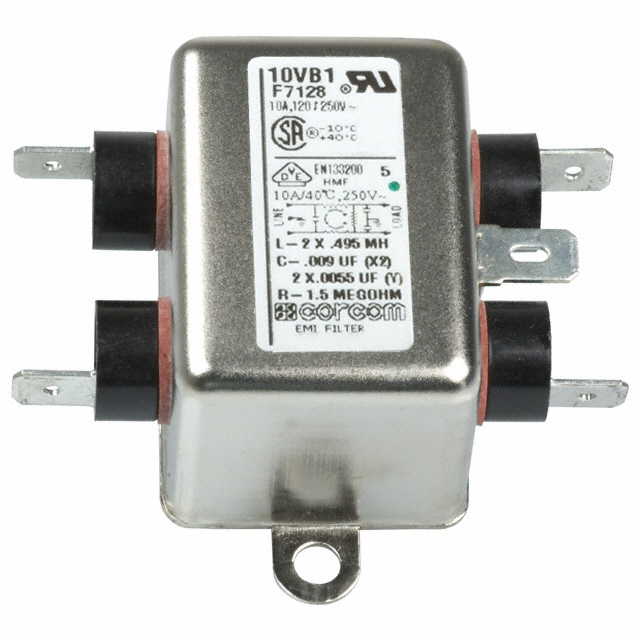

The TE Connectivity Corcom Filters 10VB1 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features quick-connect terminations and operates at 50/60Hz with a rated current of 10A and voltage of 250VAC. The unit utilizes a single-stage configuration suitable for general-purpose applications.

Feature Summary

• Single-phase EMI/RFI filtering for power lines
• Chassis mount installation type
• Quick connect terminal style

Applications

• General purpose equipment
• High impedance loads at low current

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions, as generic descriptions may omit critical performance details. Ensure the application environment matches the specified operating temperature range and voltage ratings before finalizing procurement.

Selection Notes

Select this component when a single-stage, chassis-mount solution is required for 10A circuits. Confirm that quick-connect terminals are compatible with the system wiring harness. Verify that the single-stage attenuation meets the specific EMI suppression requirements of the target application.

Part Context

This part belongs to the Corcom B series of power line filters. It is distinct from multi-stage or panel-mount variants within the broader TE Connectivity Corcom portfolio. The designation indicates a 10A rating and specific termination style.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute in public distributor records.
