10VDK1

Overview

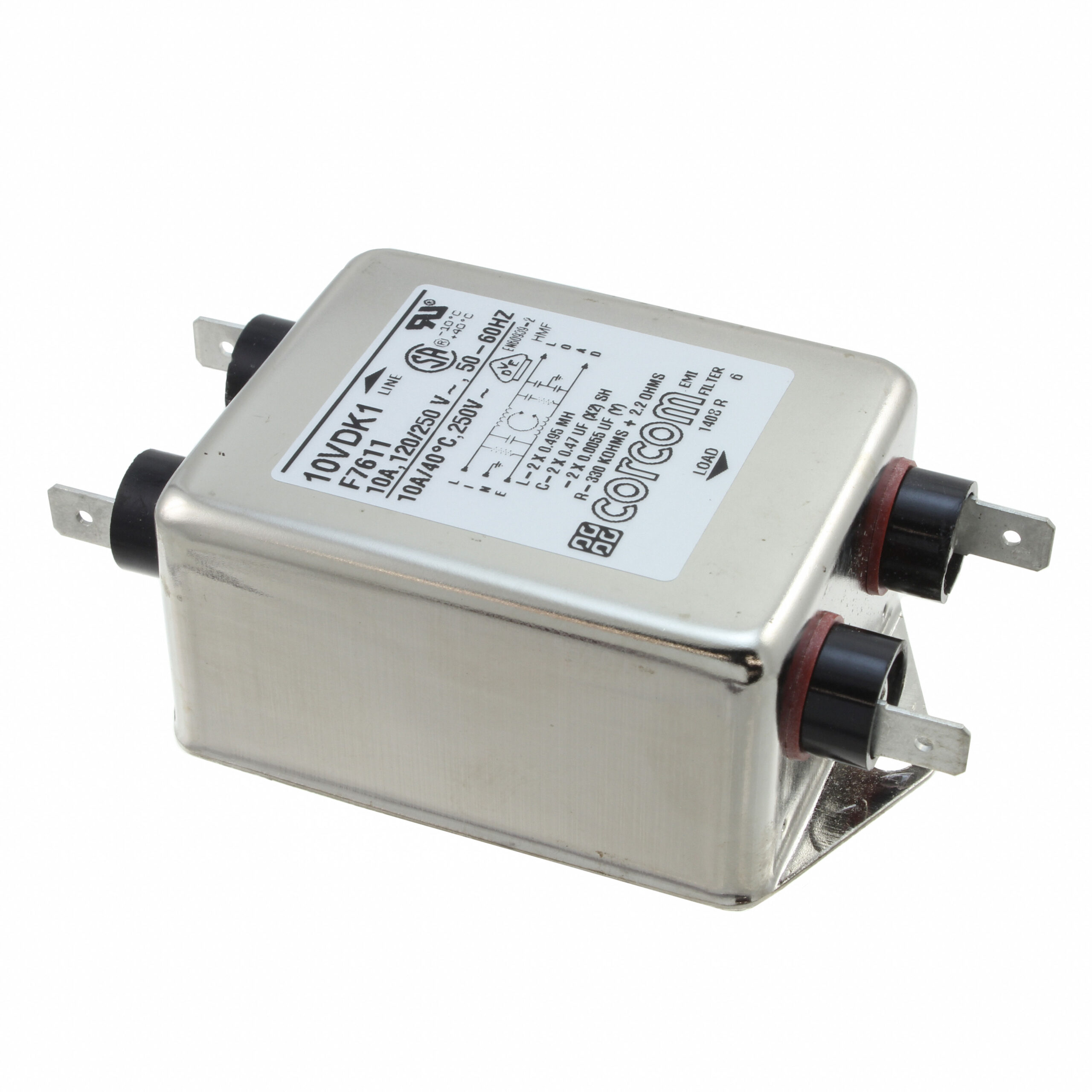

The 10VDK1 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It is rated for 10 A current and operates at AC voltages of 120 V or 250 V with a frequency of 50/60 Hz. The unit features a single-stage configuration and utilizes quick connect termination style. Designed for chassis mounting, it serves as a power line filter module to mitigate electrical noise.

Feature Summary

• Single-phase EMC/EMI line filtering
• Quick connect termination style
• Chassis mount installation

Applications

• AC power line noise reduction
• General electronic equipment interference mitigation

Procurement Notes

Verify the specific voltage rating required for your application, as sources indicate both 120V and 250VAC ratings for this part number. Confirm the single-stage configuration matches your EMI suppression needs. Ensure chassis mounting provisions align with your enclosure design. Check for any recent product change notices regarding component sourcing.

Selection Notes

Select this component when a single-stage solution is sufficient for your EMI requirements. The quick connect interface simplifies assembly compared to soldered options. Consider the chassis mounting requirement during mechanical design. Verify that the 10A current rating meets the load demands of the protected circuit.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filter modules. The series includes various configurations for different current and voltage ratings. These filters are commonly used in industrial and commercial applications requiring compliance with electromagnetic compatibility standards.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number from TE Connectivity Schaffner.
