10VK3

Overview

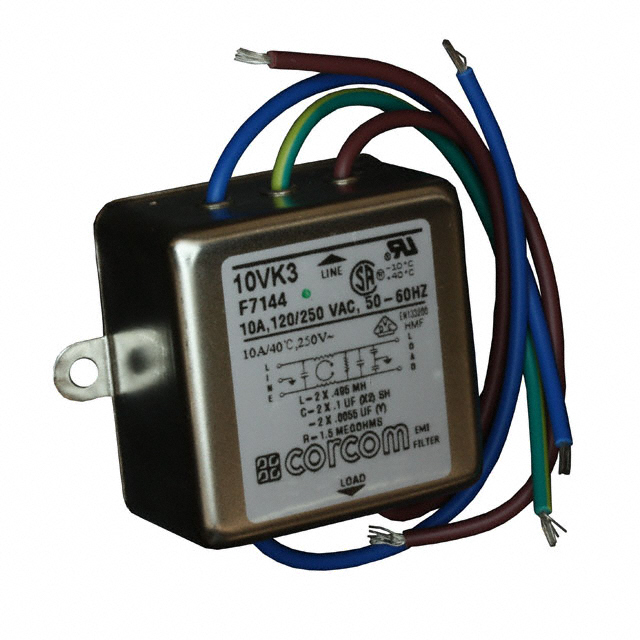

The TE Connectivity Corcom Filters 10VK3 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a single-stage configuration with wire lead termination, suitable for 50/60Hz operation. The component is rated for 250VAC and supports a current capacity of 10A. Certified by CSA, UR, and VDE, it serves general-purpose applications requiring EMI and RFI suppression.

Feature Summary

• Single-stage EMI/RFI filtering capability
• Chassis mount installation style
• Wire lead termination method

Applications

• General purpose electronic equipment
• Industrial control systems
• Medical devices

Procurement Notes

Verify the specific datasheet version to confirm exact electrical characteristics and mechanical dimensions. Ensure compatibility with the target chassis opening and wire gauge requirements. Confirm certification marks (CSA, UR, VDE) meet regional regulatory standards for the intended deployment environment.

Selection Notes

Select this model when a single-stage filter solution is sufficient for the application's noise reduction needs. The wire lead termination requires integration into the system wiring harness. Verify that the 10A current rating and 250VAC voltage rating align with the power supply specifications of the connected load.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for electromagnetic interference suppression. The 10VK3 variant specifically addresses general-purpose filtering requirements using a single-stage design, distinguishing it from multi-stage or panel-mount alternatives within the broader product portfolio.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number.
