10VK6

Overview

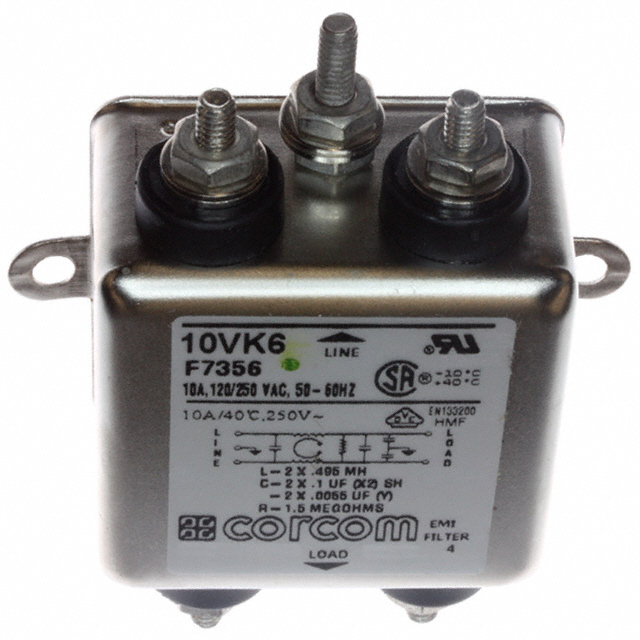

The TE Connectivity Corcom Filters 10VK6 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at 50/60Hz with a rated AC voltage of 250V and a current rating of 10A. The unit features a single-stage configuration and utilizes threaded post (8-32) termination style. Certified by CSA, UL, and VDE, it is suitable for general applications.

Feature Summary

• Single-stage EMI/RFI filtering design
• Threaded post termination for secure connection
• Chassis mount installation type

Applications

• High impedance loads
• Pulsed load environments
• General purpose RFI suppression

Procurement Notes

Verify the specific termination style matches the application requirements, as this model uses threaded posts rather than quick-connect terminals found in other series. Confirm that the single-stage attenuation meets the system's noise reduction needs before procurement.

Selection Notes

Select this component when a single-stage filter is sufficient for the required noise suppression level. Ensure the mounting hardware accommodates the chassis mount design and that the circuit connections support the 8-32 threaded post interface for reliable electrical contact.

Part Context

This part belongs to the K series of Corcom filters, which are engineered for high impedance loads and pulsed applications. It differs from the S and MV series by its single-stage configuration and specific threaded post termination, offering a distinct solution for targeted EMI mitigation scenarios.

Replacement Considerations

Public confirmed substitute part numbers: None available.
