Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：K
- Mfr：TE Connectivity Corcom Filters
- Package：Bag
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：495µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

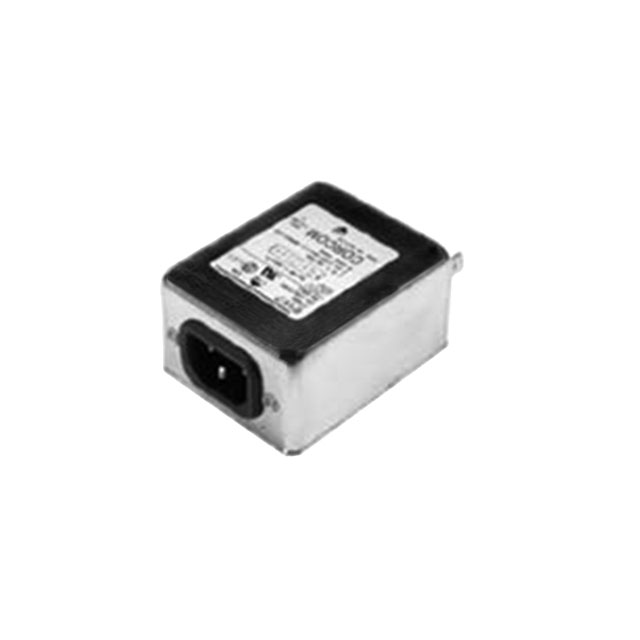

The TE Connectivity Corcom Filters 10VK7M is a single-phase EMI/RFI line filter designed for chassis mounting. It operates at a rated AC voltage of 250VAC and supports a continuous current of 10A at frequencies of 50/60Hz. The component features a two-stage configuration with quick-connect terminals for circuit integration. It holds CSA, UR, and VDE certifications and functions within an operating temperature range of -10°C to 40°C.
Feature Summary
- Provides two-stage attenuation for effective suppression of conducted electromagnetic interference on power lines.
- Designed for secure chassis mounting to ensure stable physical installation in equipment enclosures.
- Utilizes quick-connect terminal style for straightforward electrical integration into power circuits.
Applications
- Industrial automation systems requiring EMI mitigation
- Medical imaging and diagnostic equipment
- Data center and network infrastructure power supplies
Procurement Notes
Verify the specific suffix requirements against the official datasheet to ensure correct terminal and mounting configurations. Confirm that the 10A rating and 250VAC specification align with the target application's electrical demands. Check for updated certification marks such as CSA, UR, or VDE compliance before finalizing procurement decisions.
Selection Notes
Select this model when a single-phase, two-stage filter is required for 10A applications at 250VAC. Ensure the chassis mounting style fits the available enclosure space. Compare insertion loss characteristics against system EMC requirements to verify adequate noise suppression levels for sensitive electronic components.
Part Context
This component belongs to the Corcom Filters product family from TE Connectivity, specializing in EMI/RFI suppression solutions. The 10VK7M represents a standard industrial-grade line filter option within their portfolio, designed to meet global regulatory standards for electromagnetic compatibility in various electronic systems.
Replacement Considerations
Consult the official Corcom selector charts for direct substitutes within the same series. Verify that any alternative part matches the 10A current rating, 250VAC voltage, and two-stage topology. Ensure mechanical dimensions and terminal types are compatible with existing board layouts.
FAQ
What is the maximum continuous current rating for the 10VK7M?
The 10VK7M has a rated continuous current of 10A.
Does the 10VK7M support both 50Hz and 60Hz frequencies?
Yes, the component is designed to operate at both 50Hz and 60Hz frequencies.
