10VN1

Overview

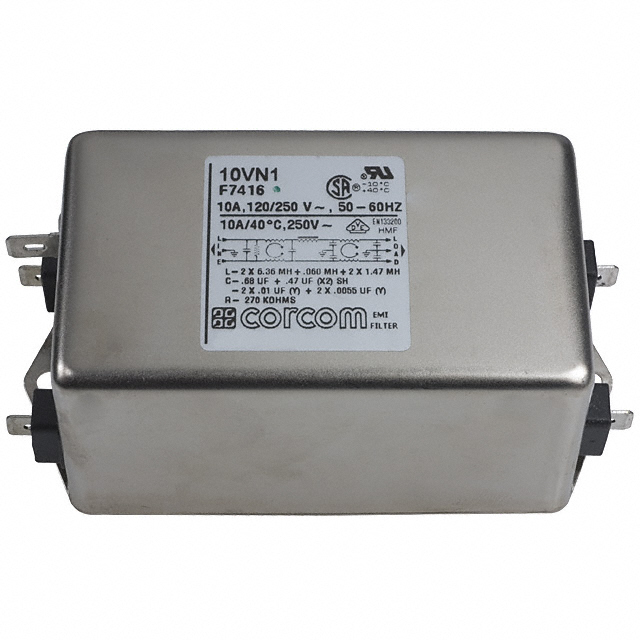

The TE Connectivity Corcom Filters 10VN1 is a single-phase EMI/RFI power line filter designed for chassis or snap-in mounting. It operates at a rated current of 10 A and supports AC voltages of 120 V and 250 V at 50/60 Hz frequencies. The component utilizes quick-connect terminals with a 0.250-inch (6.3 mm) blade width for electrical termination. Certified by CSA, UR, and VDE agencies, it provides electromagnetic interference suppression for general electronic applications within an operating temperature range of -10°C to +40°C.

Feature Summary

• Provides single-stage EMI/RFI filtering for AC power lines
• Supports both chassis and snap-in mounting configurations
• Features quick-connect terminals for rapid assembly

Applications

• General electronic equipment requiring EMI suppression
• Industrial control systems
• Medical devices

Procurement Notes

Verify the specific mounting style required for the application, as the 10VN1 designation may correspond to snap-in variants within the broader 10V series. Confirm terminal type compatibility with mating connectors. Check for RoHS3 compliance status in the latest manufacturer documentation before finalizing procurement specifications.

Selection Notes

Select this component when a 10 A rating and dual voltage capability (120/250 VAC) are required for single-phase applications. Ensure the enclosure allows for either snap-in or chassis installation methods. Verify that the leakage current characteristics meet safety standards for the intended end-use environment.

Part Context

This part belongs to the TE Connectivity Corcom Filters product line, which specializes in power line filters for noise reduction. The 10V series typically denotes single-stage filters with a 10 A current rating. These components are widely used in commercial and industrial sectors to ensure electromagnetic compatibility.

Replacement Considerations

Publicly confirmed substitute part numbers for the 10VN1 were not identified in the provided source material.
