10VR6

Overview

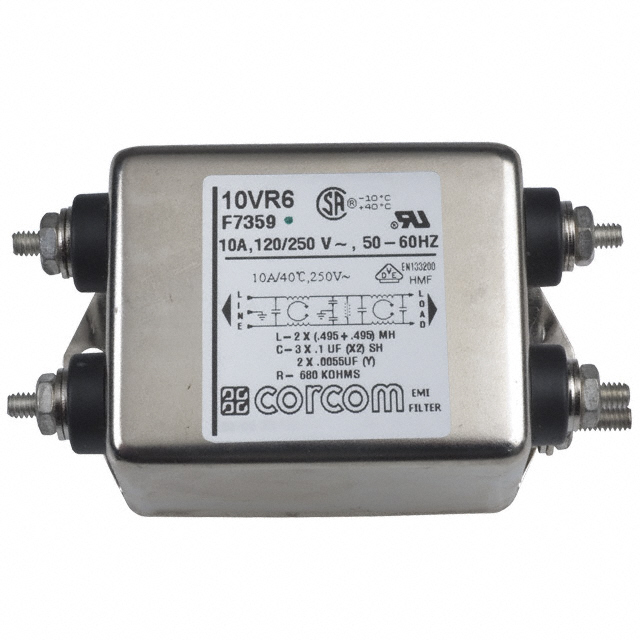

The TE Connectivity Corcom Filters 10VR6 is a single-phase, two-stage EMC/EMI line filter designed for chassis mounting. It features a threaded post termination style compatible with 8-32 fasteners. The component is rated for a continuous current of 10 A and operates at voltages up to 250 VAC within a frequency range of 50/60 Hz. This general-purpose RFI power line filter is engineered for low impedance loads in noisy environments.

Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Chassis mount design with threaded post termination
• Suitable for low impedance loads in high-noise environments

Applications

• General purpose industrial equipment requiring EMI/RFI suppression
• Low impedance load applications in noisy RFI environments
• Medical device power entry modules

Procurement Notes

Verify the specific termination requirements match the 8-32 threaded post specification. Confirm that the chassis mounting method aligns with the mechanical design constraints of the target enclosure. Ensure the operating environment remains within the specified voltage and current ratings for reliable performance.

Selection Notes

Select this model when a two-stage filter is required for significant noise reduction in low impedance circuits. The threaded post termination offers robust mechanical stability compared to quick-connect styles. Consider the physical dimensions and mounting hole patterns to ensure compatibility with the system chassis layout.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference solutions. The 10VR6 represents a standard general-purpose filter option within their portfolio, balancing performance with versatile mounting capabilities for various electronic systems.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number from TE Connectivity Schaffner.
