10VR7

Overview

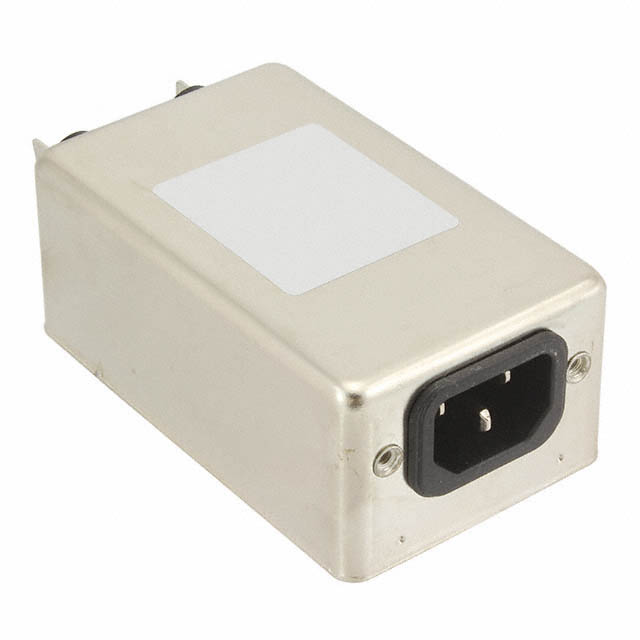

The TE Connectivity Corcom 10VR7 is a single-phase EMI filter designed for AC power line applications. It features a compact vertical mount chassis configuration with integrated fuse protection. The unit provides common mode and differential mode noise attenuation to ensure electromagnetic compatibility in sensitive electronic equipment. Rated for 10 Amperes at 250 VAC, it meets stringent safety standards including UL, CSA, and EN certifications. The filter utilizes high-performance ferrite materials and precision capacitors to suppress conducted interference across a wide frequency range, ensuring reliable operation in industrial and commercial environments.

Feature Summary

• Integrated inline fuse holder for overcurrent protection
• Vertical chassis mounting design for space-efficient installation
• Comprehensive EMI/RFI suppression capabilities
• Certified compliance with international safety standards

Applications

• Medical imaging equipment
• Industrial control systems
• Commercial office automation devices
• Test and measurement instruments

Procurement Notes

Verify the specific voltage rating and current capacity requirements against the application load before procurement. Confirm that the fuse type and rating match the system's protection needs. Ensure the mounting orientation aligns with the chassis design constraints. Check for any specific regional certification requirements such as CE or CCC if applicable to the deployment location.

Selection Notes

Select this model based on the need for a single-phase filter with built-in fuse protection. Consider the physical dimensions and terminal type compatibility with existing wiring harnesses. Evaluate the required attenuation levels against the specific noise spectrum present in the target environment. Ensure the operating temperature range covers the expected ambient conditions of the installation site.

Part Context

This component belongs to the Corcom series of power line filters manufactured by TE Connectivity. The series is known for providing robust electromagnetic interference suppression solutions for various electronic applications. The 10VR7 variant specifically addresses the needs of single-phase AC circuits requiring moderate current handling and integrated safety features.

Replacement Considerations

When replacing, ensure the substitute part matches the electrical ratings and physical footprint. Verify that the new filter offers equivalent or superior attenuation characteristics. Confirm compatibility with existing mounting hardware and terminal connections. Check for any changes in certification approvals required for the end product.
