10VS1

Overview

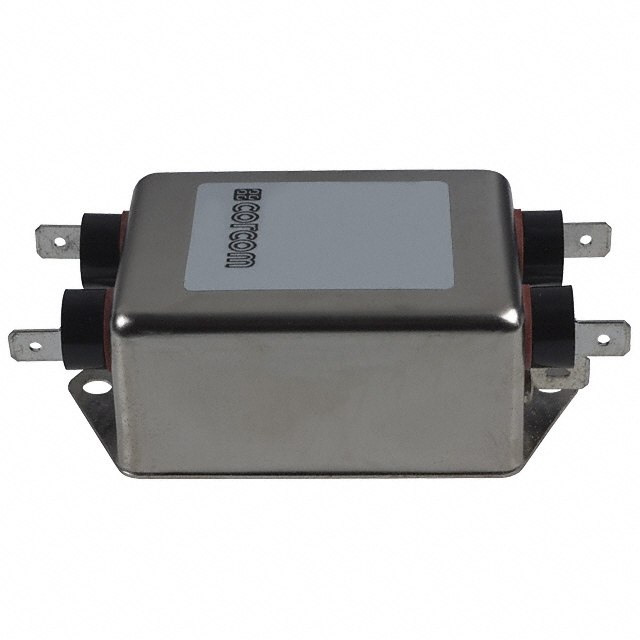

The TE Connectivity Corcom Filters 10VS1 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at 50/60Hz with a current rating of 10 A and voltage ratings of 120VAC or 250VAC. The component features a two-stage configuration and utilizes quick connect terminals for circuit attachment. Certified by CSA, UR, and VDE, it functions within a temperature range of -10°C to 40°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation with flange design
• Quick connect terminal style for rapid circuit integration

Applications

• General purpose electronic equipment power conditioning
• Industrial control systems requiring EMI/RFI mitigation
• Medical device power input stages

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the operating environment remains within the specified temperature limits. Check for any recent product change notices regarding material composition or certification status before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 10A applications. Ensure the mounting space accommodates the chassis mount form factor. Verify that the quick connect terminal dimensions match the available PCB or wire harness connectors in the design.

Part Context

This component belongs to the Corcom S series of line filters. It is manufactured by TE Connectivity Corcom Filters. The part is currently active and supported by official datasheets and selection charts for technical reference.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official TE Connectivity resources for potential cross-references.
