10VSK7M

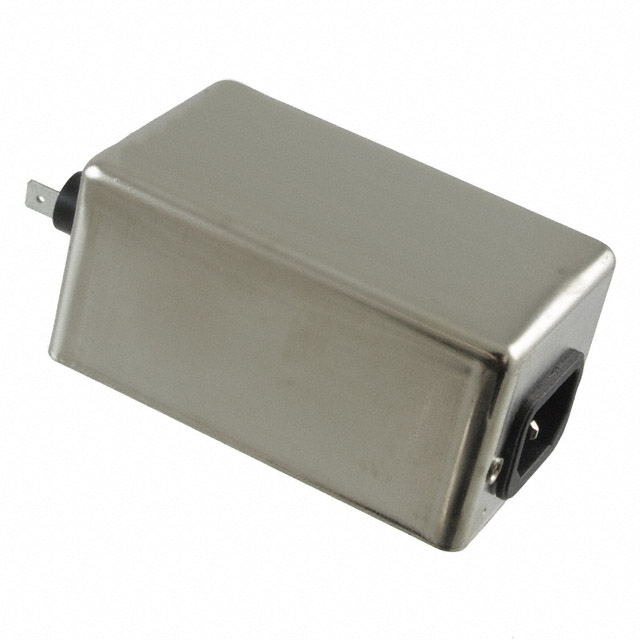

Overview

The TE Connectivity Corcom Filters 10VSK7M is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 10 A and operates at voltages of 120 VAC or 250 VAC with a frequency range of 50/60 Hz. The unit features a two-stage configuration utilizing quick connect terminals. Certified by CSA, UR, and VDE, it functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides two-stage attenuation for effective electromagnetic interference suppression in AC power lines.
• Features IEC 320-C14 connector interface combined with quick connect terminals for streamlined integration.
• Includes integrated voltage selector capability to accommodate both 120 VAC and 250 VAC operational requirements.

Applications

• Industrial control systems requiring EMI noise reduction
• Medical equipment power entry modules
• Commercial electronic devices needing certified line filtering

Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm terminal style and certification status. Confirm RoHS compliance requirements as specifications may vary by manufacturing batch. Ensure chassis mounting dimensions align with enclosure design before procurement.

Selection Notes

Select this component when dual-voltage operation (120V/250V) is required alongside high-current capacity. The two-stage design offers superior noise filtration compared to single-stage alternatives. Verify that the chassis mounting style fits the available panel space and that quick connect termination matches existing wiring harnesses.

Part Context

This model belongs to the TE Connectivity Corcom SK series of power line filters. It is part of a broader family of EMI/RFI solutions designed for AC power applications. The series provides various current ratings and stage configurations to meet diverse regulatory and performance standards for global markets.

Replacement Considerations

Consult official substitution charts for equivalent models within the Corcom portfolio. Verify that any replacement maintains identical current ratings, voltage selectors, and mounting styles to ensure mechanical and electrical compatibility without redesigning the assembly.

FAQ

Does the 10VSK7M support both 120V and 250VAC inputs?

Yes, the filter includes a voltage selector feature allowing operation at either 120 VAC or 250 VAC frequencies.

What type of termination does this filter use?

The component utilizes quick connect terminals for electrical connection and is designed for chassis mounting.
