10VW1

Overview

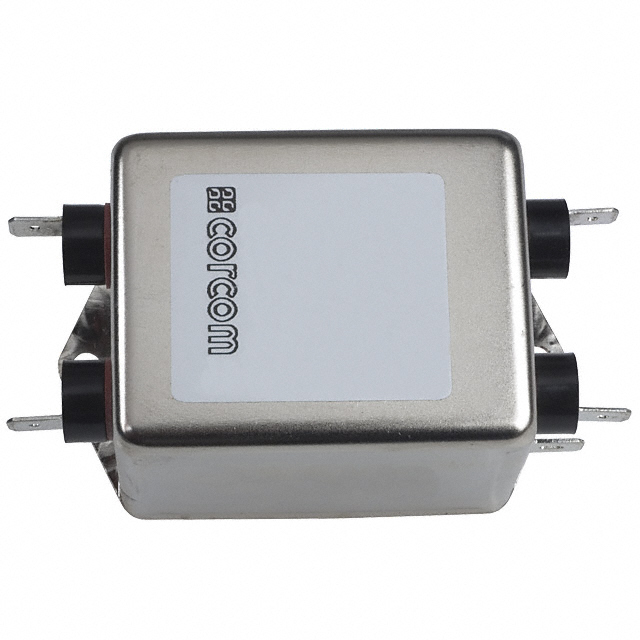

The TE Connectivity Corcom Filters 10VW1 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates at 50Hz and 60Hz with a maximum current rating of 10A and a voltage rating of 250VAC. The component features a two-stage configuration and utilizes quick-connect terminals for electrical interfacing. Certified by CSA, UR, and VDE, it supports a working temperature range from -10°C to 40°C.

Feature Summary

• Two-stage filtering architecture for enhanced emission control
• Flange mount design for secure chassis installation
• Quick-connect terminal style for simplified wiring
• Multipurpose capability for both emission control and susceptibility reduction

Applications

• General industrial equipment EMC compliance
• Power supply input filtering
• Electronic device noise suppression

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure correct series identification. Confirm that the required certifications such as UL, CSA, or VDE meet the target market regulations. Check the datasheet for precise mechanical dimensions and terminal spacing to validate compatibility with existing PCB or panel layouts before procurement.

Selection Notes

Select this model when a single-phase filter rated for 10A at 250VAC is required. Ensure the application environment stays within the specified -10°C to 40°C operating temperature range. Verify that the chassis mounting method and quick-connect terminals align with the system's mechanical and electrical interface requirements.

Part Context

This component belongs to the Corcom W and MV series of RFI filters manufactured by TE Connectivity. These filters are engineered for general-purpose power line conditioning. The product is currently in active production status and complies with RoHS3 standards.

Replacement Considerations

FN2080A-10-06 by TE Connectivity Schaffner is listed as a similar substitute part.
