1107578

Overview

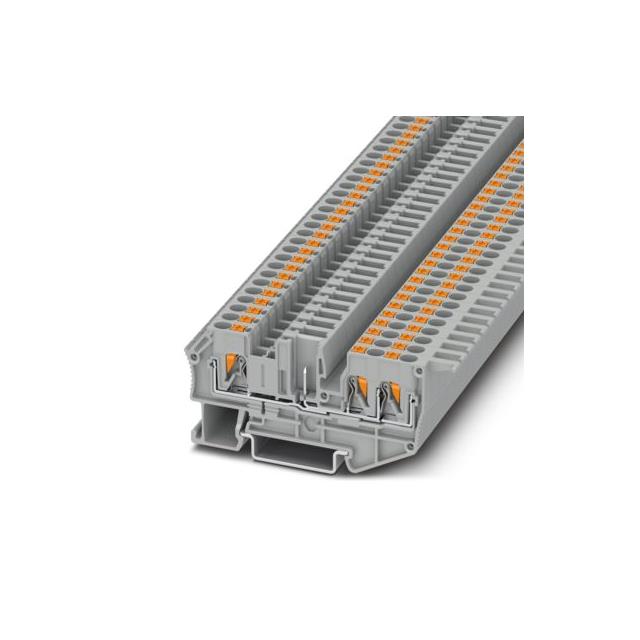

The PT 4/S-QUATTRO/1P (Order No. 1107578) is a feed-through terminal block from the Phoenix Contact QUATTRO series. It features a nominal voltage of 800 V and supports a nominal current of 24 A, with a thermal continuous current (Ith) rating of 24 A. The device utilizes a push-in / plug connection method for wire termination. It is designed as a single-pole unit with one deck level.

Feature Summary

• Utilizes push-in / plug connection technology for secure wire termination without tools
• Designed as a feed-through terminal block allowing signal continuity across the module
• Constructed in a compact form factor suitable for dense control cabinet layouts

Applications

• Industrial automation control panels requiring reliable signal routing
• Electrical distribution systems operating within specified voltage and current limits
• Machine building applications needing standardized terminal connections

Procurement Notes

Verify the specific order number 1107578 against technical requirements before procurement. Confirm that the 800 V nominal voltage and 24 A current ratings align with the circuit design. Ensure compatibility with the push-in connection method for the intended wire gauges. Check for any required accessories such as marking systems or bridging elements that may be necessary for the specific installation configuration.

Selection Notes

Select this component when a feed-through function is required for circuits rated up to 800 V and 24 A. The push-in connection method offers advantages for rapid assembly compared to screw terminals. Consider the physical dimensions and mounting rail compatibility if space constraints exist. Verify that the single-pole configuration meets the circuit density needs of the application.

Part Context

This part belongs to the PT series of terminal blocks by Phoenix Contact, specifically the QUATTRO sub-series known for high-density packaging. The model designation indicates a single-pole feed-through variant. It is distinct from bridge terminals or signal modules within the same product family.

Replacement Considerations

Direct substitutes must match the 800 V / 24 A ratings and push-in connection type. Cross-reference with other Phoenix Contact QUATTRO feed-through models if availability is an issue. Ensure mechanical footprint compatibility with existing DIN rail installations.
