110AYC10B

Overview

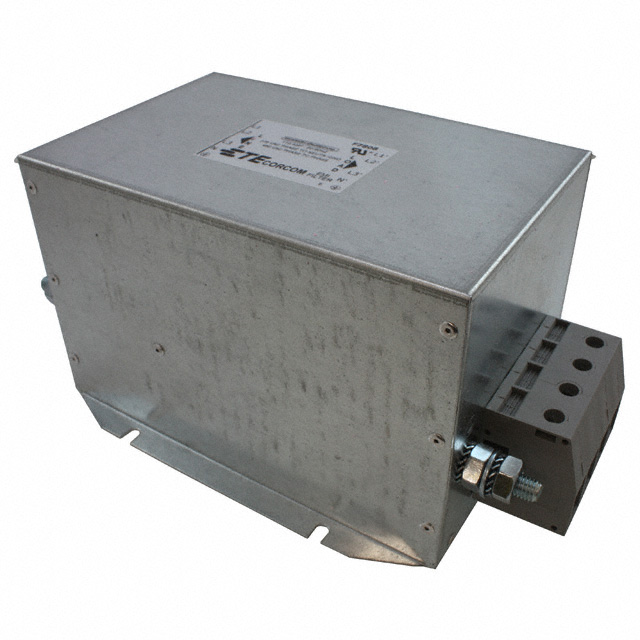

The TE Connectivity Corcom Filters model 110AYC10B is a three-phase RFI filter rated for 110 A at 480 V AC. It operates at 50 Hz and 60 Hz frequencies. The unit features flange mounting and terminal block termination. It is classified as a single-stage EMC/EMI line filter within the Corcom AYC series.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Designed for high-current industrial applications up to 110 amperes
• Utilizes terminal block connections for secure electrical interfacing

Applications

• Industrial machinery power distribution
• Three-phase motor drive input filtering
• Heavy-duty manufacturing equipment noise reduction

Procurement Notes

Verify that the specific application voltage matches the 480 V AC rating. Confirm that the required current capacity meets or exceeds the 110 A specification. Ensure the installation environment supports the flange mounting style and terminal block termination method. Check for any specific regional certification requirements beyond standard industrial compliance.

Selection Notes

Select this component when three-phase EMI suppression is required for high-current loads. The 110 A rating distinguishes it from lower-capacity Corcom filters. Terminal block termination is suitable for fixed industrial wiring rather than flexible cable connections. Verify panel thickness compatibility if custom mounting hardware is needed.

Part Context

This part belongs to the Corcom AYC series, which focuses on high-performance RFI filtering for demanding industrial environments. The AYC series typically offers robust construction for heavy-duty use. This specific model represents the upper end of the current capacity range for single-stage three-phase filters in this product line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity official resources for direct cross-reference data before replacing this component.
