Overview

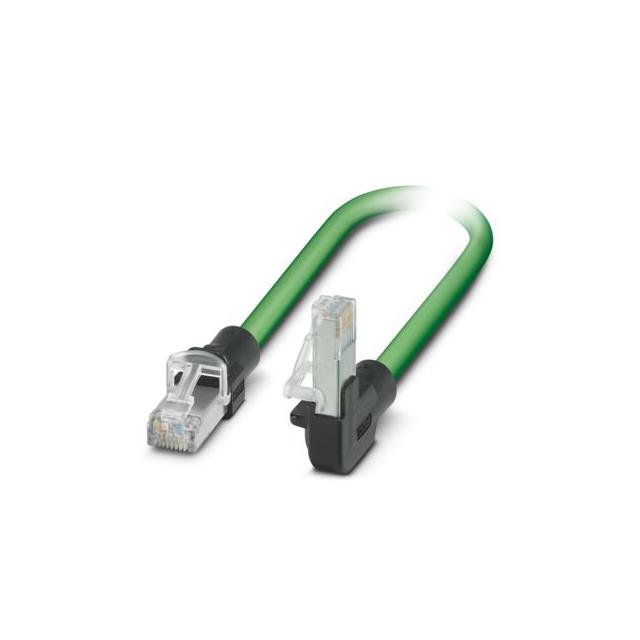

The Phoenix Contact NBC-R4ACS/0,3-93B/R4ACL (Part Number 1113297) is a shielded patch cable designed for industrial Ethernet applications. It features an RJ45 connector on one end and a right-angle RJ45/IP20 connector on the other, with a cable length of 0.3 meters. The component supports transmission speeds up to 100 Mbps and meets CAT5 performance standards. Electrical specifications include a rated voltage of 72 V (III/2), a rated current of 1.75 A, insulation resistance greater than 1 TΩ, and contact resistance less than 20 mΩ.

Feature Summary

• Features SF/UTP shielding structure combining aluminum foil and tinned copper braid for effective noise protection.
• Utilizes PVC-insulated flat cables with tinned copper cores for reliable signal transmission.
• Includes IP20 protection rating on the field-side connector for basic environmental safety.

Applications

• Industrial Ethernet network connections
• Automation system cabling
• Control cabinet interconnections

Procurement Notes

Verify the specific connector orientation requirements, as this model includes a right-angle plug on one end. Confirm that the CAT5 specification and 100 Mbps speed meet the project's bandwidth needs. Ensure the 0.3-meter length is sufficient for the installation distance. Check that the 72 V rated voltage aligns with the system's electrical parameters.

Selection Notes

Select this component when a short, shielded connection between standard RJ45 ports and protected field-side interfaces is required. The right-angle design aids in tight spaces where straight connectors might obstruct adjacent components. Consider the SF/UTP shielding if electromagnetic interference is present in the environment. Verify compatibility with existing RJ45 infrastructure before procurement.

Part Context

This part belongs to Phoenix Contact's modular Ethernet cable series, specifically designed for industrial automation environments. The numbering convention indicates the connector types, length, and shielding characteristics. It serves as a direct link solution within control systems, bridging standard networking equipment with field devices requiring protected connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Ensure exact matching of the right-angle connector configuration and shielding type when sourcing alternatives.

FAQ

What is the shielding structure of this cable?

The cable uses an SF/UTP structure, consisting of aluminum foil and a tinned copper braid shield.

Does this cable support Gigabit Ethernet?

No, it is specified for CAT5 performance with a maximum transmission speed of 100 Mbps.
