1118092

Overview

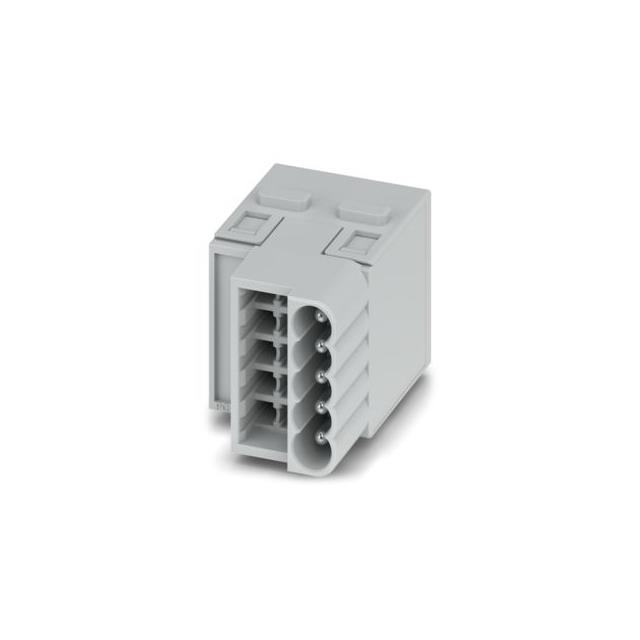

Phoenix Contact part number 1118092 is a HC-M-05-MWF-M contact insert module designed for heavy-duty connector systems. It features five positions with five power contacts, utilizing a pin configuration and push-in connection profile. The module supports applications in power distribution with a rated voltage of 400 V and a current capacity of 16 A. It accommodates wire cross-sections ranging from 0.5 mm² to 2.5 mm². The component includes dual-channel bridge wells for bridging pieces and is constructed with turned contact material.

Feature Summary

• Features a male module design with five positions and five dedicated power contacts.
• Utilizes a push-in connection profile for secure wiring without tools.
• Incorporates dual-channel bridge wells to facilitate the use of bridging pieces.
• Constructed with turned contact material for reliable electrical performance.

Applications

• Power distribution connections
• Heavy-duty industrial connector assemblies
• Electrical control cabinet wiring

Procurement Notes

Verify that the specific application requires a 5-position power insert module compatible with the HC-M series housing. Confirm that the operating environment aligns with the 400 V rating and 16 A current capacity. Ensure the wiring gauge falls within the 0.5 mm² to 2.5 mm² range supported by the push-in terminals. Check for compatibility with required bridging accessories given the dual-channel bridge well design.

Selection Notes

Select this module when a robust power connection is needed for circuits up to 16 A. The push-in technology simplifies installation compared to screw terminals. Consider the physical dimensions and mating requirements of the corresponding heavy-duty housing. Evaluate if the 400 V rating meets the system's electrical isolation needs. Verify that the turned contact material suits the conductivity requirements of the application.

Part Context

The HC-M-05-MWF-M belongs to Phoenix Contact's modular contact insert family for heavy-duty connectors. These inserts are designed to be mounted into corresponding plastic or metal housings. The MWF suffix typically denotes specific contact material and connection type characteristics within the product line. This module serves as a core interconnect element for industrial power and signal transmission systems.

Replacement Considerations

Direct substitutes must match the 5-position count, power contact configuration, and push-in connection type. Verify compatibility with the same housing series to ensure mechanical fit. Cross-reference part numbers within the HC-M series for equivalent specifications.
