1150634

Overview

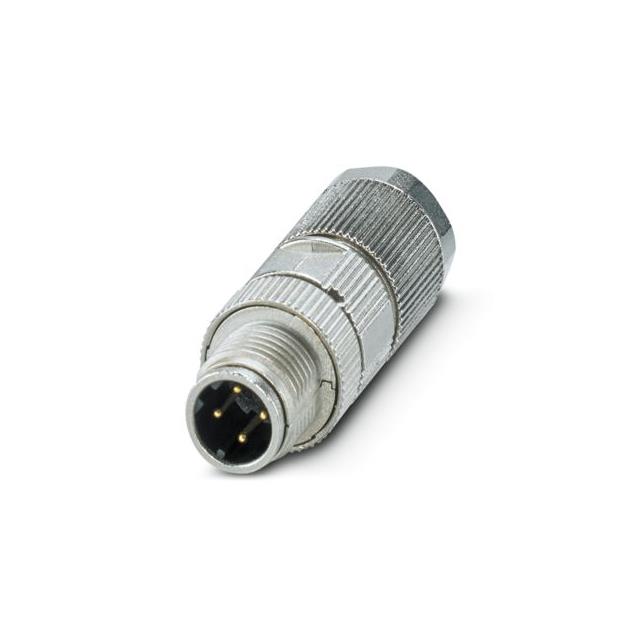

Phoenix Contact part number 1150634 is a PROFINET CAT5 data connector featuring an M12 straight male interface with D-coding. It supports 4 contacts and operates at a transmission speed of 100 MBit/s. The connector utilizes a crimp connection method and includes shielding for improved signal quality. Key specifications include a zinc knurling material for the coupling nut and compliance with industrial communication standards.

Feature Summary

• PROFINET CAT5 compatible design for reliable industrial Ethernet communication
• Shielded construction to enhance signal integrity and reduce interference
• D-coded M12 straight male connector ensuring correct mating orientation
• Crimp termination style for secure wire attachment

Applications

• Industrial automation networks requiring PROFINET connectivity
• Sensor and actuator level connections in factory environments
• Data transmission links in automated machinery
• Control cabinet wiring for fieldbus systems

Procurement Notes

Verify that the specific order matches the SACC-M12MSD-4CT-CL designation. Confirm D-coding is required for the application, as other codes exist. Ensure crimp tools compatible with Phoenix Contact terminals are available for installation. Check environmental ratings if exposed to harsh conditions beyond standard IP67 housing capabilities.

Selection Notes

Select this component when a shielded, D-coded M12 plug is needed for PROFINET applications. The 4-pole configuration suits standard Ethernet data lines. Consider the crimp termination requirement versus solder or IDC options. Verify cable diameter compatibility with the included backshell before finalizing the assembly design.

Part Context

This connector belongs to Phoenix Contact's SACC series of circular metric connectors. It is designed specifically for industrial data transmission rather than power distribution. The M12 form factor allows for compact mounting in control panels. It complements matching receptacles and cables to form complete network segments.

Replacement Considerations

Direct substitutes must match the M12 D-coded, 4-position, shielded, crimp-style specification. Generic M12 plugs may lack the specific shielding or coding required for PROFINET compliance. Verify pinout and shielding continuity with alternative manufacturers before integration.
