1154825

Overview

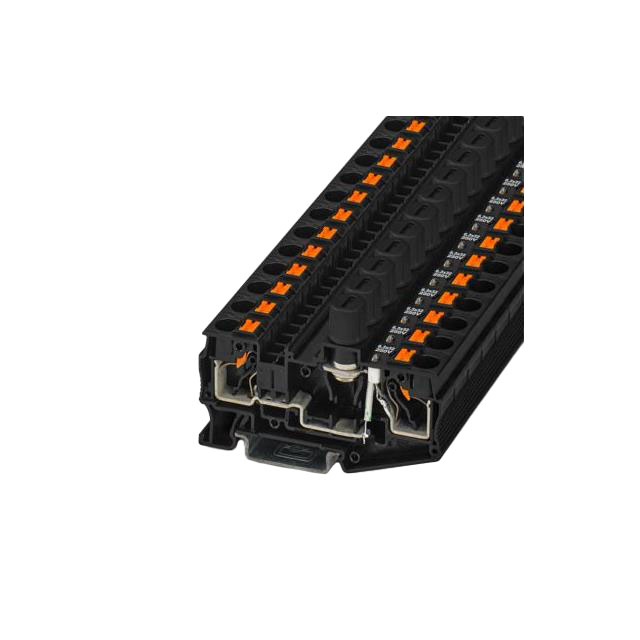

Phoenix Contact part number 1154825 is a fuse modular terminal block from the PT 6 series. It features a black housing and utilizes push-in connection technology for rapid installation. The unit supports wire cross-sections ranging from 0.5 mm² to 10 mm², corresponding to AWG sizes 8-20. It is designed for DIN rail mounting and provides two positions with disconnect functionality. The component accommodates 2-level fusing using 6.3x32 mm fuse types.

Feature Summary

• Push-in connection mechanism for tool-free wiring
• Integrated 2-level fusing capability
• DIN rail channel mounting design

Applications

• Industrial control cabinet wiring
• Protection of electrical circuits via modular fuses
• Signal distribution in automation systems

Procurement Notes

Verify the specific product description matches the required fuse dimensions and current ratings. Confirm that the push-in termination method aligns with the installation requirements. Ensure the DIN rail compatibility fits the existing mounting infrastructure. Cross-reference the official Phoenix Contact datasheet for precise technical specifications before procurement.

Selection Notes

Select this component when a compact solution for fused circuit protection is required. The push-in technology offers faster assembly compared to screw terminals. Verify that the operating voltage and current ratings meet the circuit demands. Consider the physical space constraints within the DIN rail channel layout.

Part Context

This component belongs to the PT 6 series of terminal blocks by Phoenix Contact. The series is characterized by its modular design and high density capabilities. It is widely used in industrial automation and process control environments. The PT 6 series emphasizes ease of installation and reliable electrical connections.

Replacement Considerations

No public confirmed substitute part numbers are available.
