Overview

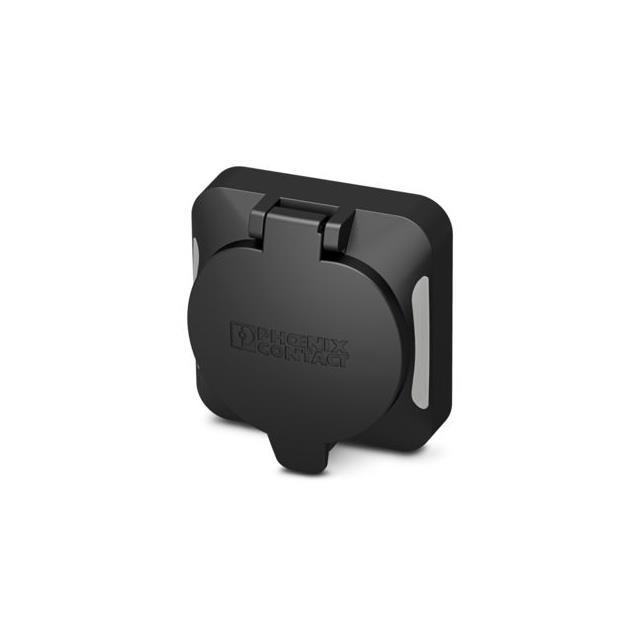

Phoenix Contact part number 1164297 is a CHARX connect modular Type 2 charging socket designed for electric vehicle (EV) charging stations. It supports Mode 3, Scheme B operation with a rated current of 32 A and voltage up to 480 V AC. The unit features a square design with panel rear mounting and M5 threading. It includes an integrated electronic lock operating at 12 V DC. The component complies with IEC 62196-2 standards and utilizes the Phoenix Contact branding.

Feature Summary

• Supports Mode 3, Scheme B charging protocols for electric vehicles
• Integrates a 12 V electronic locking mechanism for security
• Compatible with CHARX connect modular Gen 2 product range
• Features a square housing design for infrastructure installation

Applications

• Installation in EV charging stations (EVSE)
• AC charging infrastructure for electric vehicles
• Integration with compatible CHARX connect protection covers

Procurement Notes

Verify compatibility with the specific CHARX connect modular Gen 2 cable kit requirements before procurement. Confirm that the 12 V electronic lock interface matches the control circuitry of the intended charging station controller. Ensure the selected accessories, such as protection caps, are sourced from the official CHARX connect accessory list to maintain IP ratings and mechanical integrity.

Selection Notes

Select this model when a 32 A capacity is required for AC charging applications. The square form factor distinguishes it from circular variants within the CHARX series. Consider the integration of the electronic lock if security against unauthorized use is a system requirement. Verify that the mounting environment accommodates the rear-mounting dimensions and M5 thread specifications.

Part Context

This component belongs to the CHARX connect modular family, which provides flexible solutions for power and data connections in industrial and mobility sectors. The modular design allows for customization by combining different sockets, plugs, and accessories. This specific socket addresses the growing demand for standardized Type 2 connectors in public and private EV charging networks.

Replacement Considerations

No direct substitute part numbers are documented in the provided source material. Users requiring replacement should consult the official Phoenix Contact catalog for updated CHARX connect modular components or contact technical support for cross-reference information based on specific application constraints.
