Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

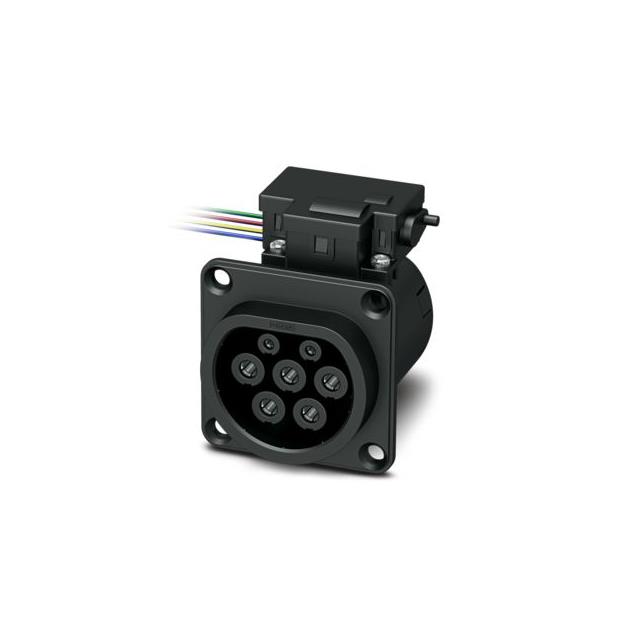

The Phoenix Contact 1164299 is a CHARX connect modular Type 2 infrastructure charging socket designed for electric vehicle charging stations. It supports a current rating of 32 A and operates at 480 V AC. The unit features a square, 4-position configuration with panel-mount installation via M5 threads. It includes an electronic locking actuator operating at 12 V and integrates a temperature sensor for enhanced safety monitoring.
Feature Summary
- Type 2 connector interface compliant with infrastructure charging standards
- Integrated electronic locking mechanism for secure connection
- Built-in temperature sensor for thermal monitoring
- Premium grade construction for durable outdoor or indoor use
Applications
- Electric vehicle charging station infrastructure
- Public EV charging networks
- Commercial fleet charging facilities
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required cable types and locking mechanisms. Confirm that the 12 V electronic lock voltage matches your control system specifications. Check for any regional certification requirements such as CE or UL before procurement. Ensure the panel cutout dimensions align with the square housing design for proper fitment during installation.
Selection Notes
Select this model when a Type 2 socket with integrated thermal protection is required. The 32 A rating suits standard Level 2 charging applications. Consider the 12 V electronic lock requirement for integration with access control systems. Verify that the M5 thread mounting method is compatible with the intended enclosure structure.
Part Context
This component belongs to the CHARX connect modular series by Phoenix Contact, which provides standardized solutions for energy and data transmission in industrial and infrastructure environments. The series emphasizes modularity and robustness for demanding applications.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific configuration. Alternative models may require verification of pinout, locking voltage, and thermal sensor integration.
FAQ
What is the locking actuator voltage?
The electronic locking actuator operates at 12 V.
Does this socket include a temperature sensor?
Yes, the unit is equipped with an integrated temperature sensor.
