1187192

Overview

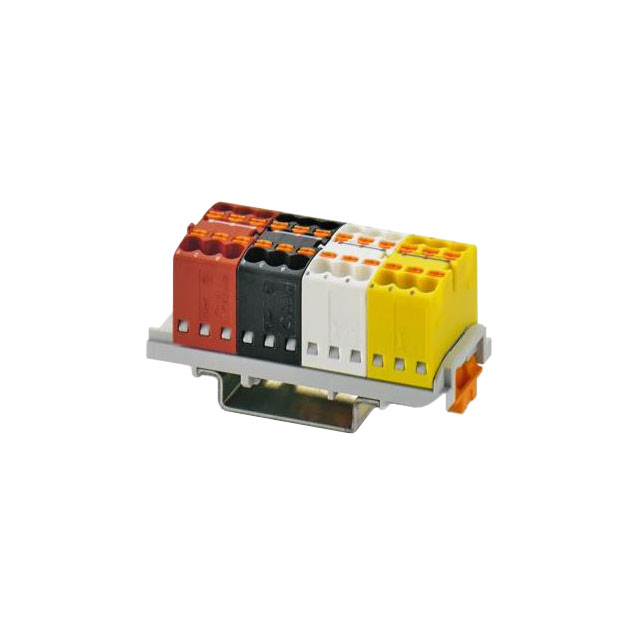

The Phoenix Contact 1187192 is a PTFIX 1.5-KNX-NS35 function distribution block designed for KNX bus systems in building installations. It features an inline configuration with 24 connection points and push-in connections. The unit supports nominal voltages of 500 V and currents up to 17.5 A. Wire cross-sectional areas range from 0.14 mm² to 2.5 mm². Colors adhere to EIB cable coding standards, and individual blocks are internally bridged.

Feature Summary

• Internal bridging within individual blocks
• Color coding aligned with EIB cable standards
• Push-in connection technology

Applications

• KNX bus infrastructure in building installations
• Electrical control cabinet wiring
• Signal distribution for automation systems

Procurement Notes

Verify the specific part number 1187192 against official Phoenix Contact documentation to confirm compatibility with existing KNX bus architectures. Ensure that the required wire cross-sections fall within the 0.14 mm² to 2.5 mm² range supported by the push-in terminals. Confirm that the 500 V nominal voltage rating meets the system requirements before procurement.

Selection Notes

Select this component when integrating KNX bus systems requiring standardized color coding and internal bridging capabilities. The push-in connection method offers efficient installation without tools. Consider the 24-position capacity and NS35 rail mounting compatibility when designing control panels for building automation applications.

Part Context

This distribution block belongs to the PTFIX 1.5 series from Phoenix Contact, specifically engineered for KNX applications. It serves as a critical interface component for organizing and distributing signals within building management systems. The design emphasizes ease of installation and adherence to industry-standard color codes for reliable signal identification.

Replacement Considerations

Consult Phoenix Contact cross-reference tools for compatible alternatives. Verify that any substitute maintains the same 24-position layout, push-in connection type, and KNX-specific color coding to ensure seamless integration into existing bus structures.
