119738-1

Edgeboard Connectors Overview

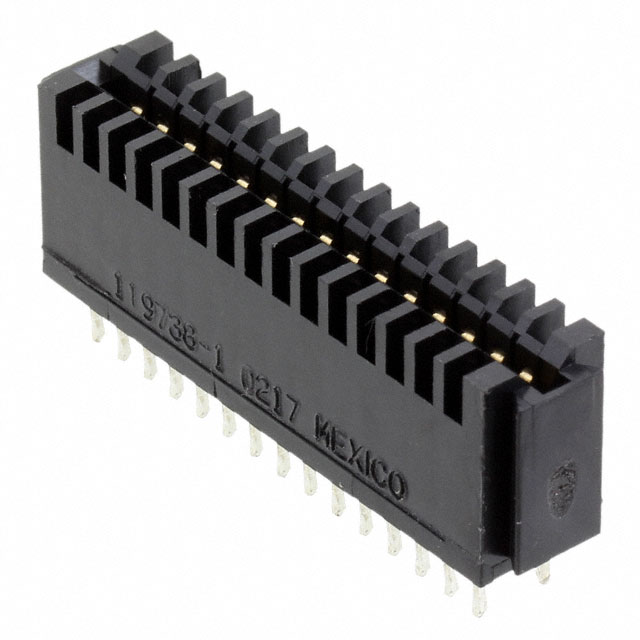

The TE Connectivity AMP Connectors part number 119738-1 is a standard edge connector designed for board-to-board applications. It features a dual female configuration with 30 positions arranged in two rows. The connector utilizes a 2.54 mm (0.100 inch) centerline pitch to ensure precise alignment and reliable signal transmission between mating boards.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board-to-board interconnection
• Standard 2.54 mm pitch ensures consistent alignment across mating interfaces
• Constructed for high-density mounting on printed circuit boards

Edgeboard Connectors Applications

• High-density board-to-board interconnect systems
• Industrial control module assembly
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm exact pin count, row configuration, and termination style. Ensure the selected variant matches the required PCB footprint and mating partner specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female edge connector with a 2.54 mm pitch is required. Confirm that the mating card thickness and insertion depth align with the connector's mechanical constraints. Validate electrical requirements against the connector's current carrying capacity specifications.

Edgeboard Connectors Part Context

This component belongs to the AMP PACE series of standard edge connectors manufactured by TE Connectivity. The series provides robust interconnection solutions for various electronic assemblies requiring reliable signal integrity and mechanical stability in compact form factors.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include part numbers 1-119738-1 and 5-119738-1 from the same manufacturer family. Verify that alternative variants maintain identical pitch, position count, and mounting characteristics to ensure functional interchangeability.
