1200676

Overview

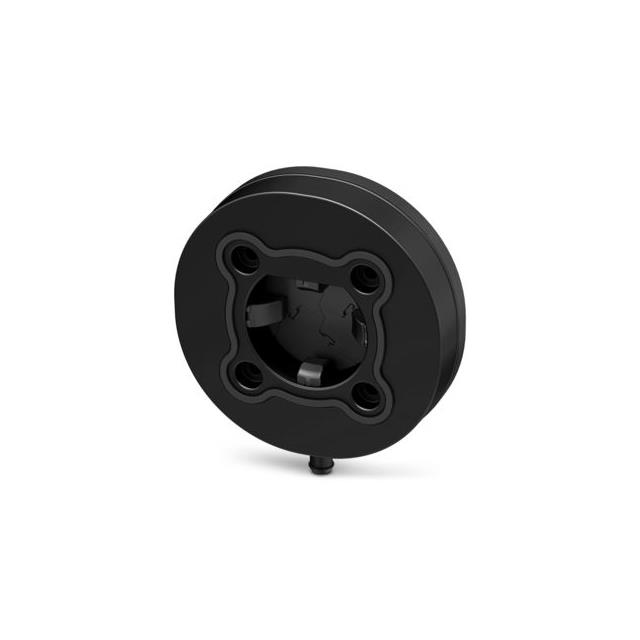

The Phoenix Contact 1200676 (EV-T2M3SOS) is a shutter for infrastructure charging sockets, part of the CHARX connect modular series. It features an automatic closing mechanism and rear mounting with M5 thread. Dimensions are 137 mm width, 137 mm height, and 36.95 mm depth. Drilling dimensions are 60 mm x 60 mm. The material is black plastic (RAL 9005). It complies with IEC 61851-1, IEC 62196-1, and IEC 62196-2 standards. Operating temperature ranges from -30 °C to 50 °C.

Feature Summary

• Automatic closing mechanism for enhanced safety
• Rear mounting design with M5 thread
• Compatible with Type 2 infrastructure charging sockets
• Black plastic construction

Applications

• Integration into EV charging infrastructure
• Protection of Type 2 charging sockets in public stations
• Installation in control systems for electric vehicle supply equipment

Procurement Notes

Verify compatibility with specific CHARX connect modular socket models before procurement. Confirm that the selected socket variant supports rear mounting with M5 threads. Ensure environmental conditions fall within the specified operating temperature range of -30 °C to 50 °C. Check for required accessories such as protective caps if IP54 rating is needed. Validate compliance with local IEC standards for installation sites.

Selection Notes

Select this component when automatic protection for Type 2 infrastructure sockets is required. It is suitable for Gen 2 CHARX connect modular systems. Consider the circular form factor and rear mounting constraints during design. Verify that the application does not require Easy Mount compatible caps, as this shutter is incompatible with them. Ensure the environment supports the specified plastic material properties.

Part Context

This shutter belongs to the CHARX connect modular product family by Phoenix Contact. It is designed specifically for infrastructure-side charging applications. The component serves as a protective accessory for Type 2 sockets. It is part of the second generation of CHARX connect modular accessories. The product ensures safe operation by automatically covering the socket when not in use.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific shutter model. Users should verify compatibility with existing socket installations rather than seeking alternative part numbers. The automatic closing mechanism and M5 mounting are unique specifications.
