1207310

Overview

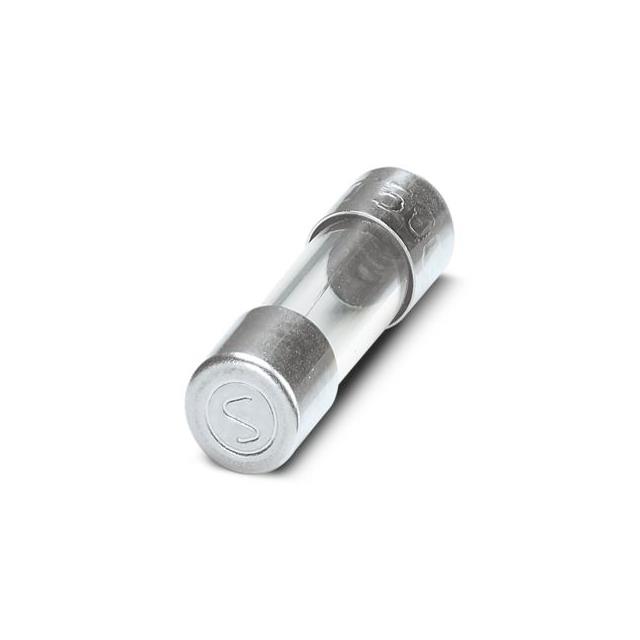

Phoenix Contact part number 1207310 is a replacement fuse set designated as CF-10 FUSE 250V SET. It is classified as a cartridge fuse with dimensions of 5 x 20 mm. The component features a rated voltage of 250 V and a current rating of 2 A. It utilizes a slow-blow (T) time-delay characteristic to handle temporary inrush currents. This product serves as an accessory for crimping tools, specifically the CF-10 series.

Feature Summary

• Provides a 2 A slow-blow (T) time-delay characteristic for circuit protection
• Designed with standard 5 x 20 mm cartridge dimensions
• Rated for operation at 250 V

Applications

• Replacement fuses for Phoenix Contact CF-10 crimping tools
• Industrial equipment maintenance requiring 250 V 2 A T-fuses
• Electrical control panel servicing

Procurement Notes

Verify that the required fuse specification matches the 2 A slow-blow (T) rating and 250 V voltage class. Confirm the physical dimensions are 5 x 20 mm to ensure compatibility with the intended tool or device. Ensure the application does not require a fast-acting fuse type, as this unit is specifically designed for time-delay performance.

Selection Notes

Select this component when a 2 A time-delay fuse is required for 250 V circuits. The choice is driven by the need for protection against inrush currents typical in certain industrial loads. Verify that the 5 x 20 mm form factor fits the holder or tool compartment. Consider the slow-blow characteristic if the load involves transient spikes during startup.

Part Context

This item belongs to the Phoenix Contact accessories portfolio, specifically categorized under fuses and tool components. It is distinct from the company's connector and power supply lines. The part functions as a consumable replacement element for specialized hand tools rather than a standalone electronic component for permanent circuit integration.

Replacement Considerations

Direct substitute part numbers are not explicitly confirmed in the provided documentation. Users should verify compatibility based on the 2 A T-rating and 5 x 20 mm size. Generic fuses meeting these exact electrical and dimensional specifications may serve as alternatives if Phoenix Contact units are unavailable.

FAQ

What is the time-delay characteristic of this fuse?

The fuse has a slow-blow (T) characteristic, designed to withstand temporary overloads.

What are the physical dimensions of the fuse?

The fuse measures 5 mm in diameter and 20 mm in length.
