120KEHD10BBSD

Overview

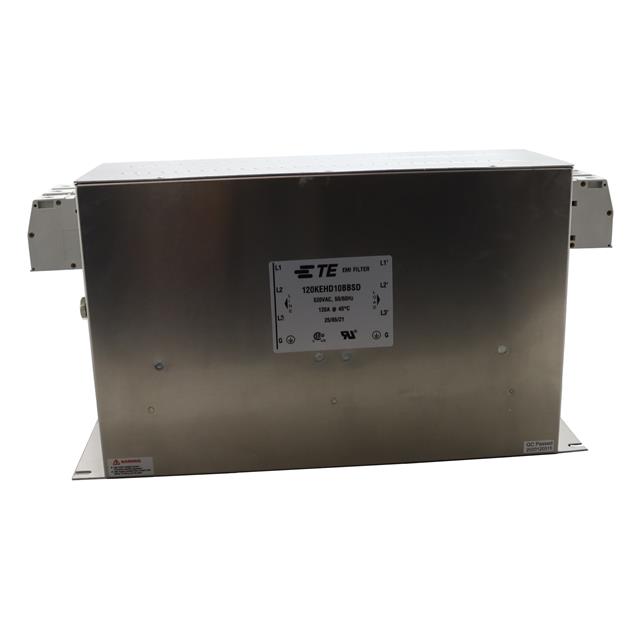

The TE Connectivity Corcom Filters model 120KEHD10BBSD is a three-phase high-performance EMI filter designed for industrial power line applications. It features a chassis mount configuration with screw termination style, ensuring secure electrical connections in demanding environments. The unit supports an operating frequency of 50 Hz and 60 Hz, accommodating standard utility power systems. Rated for a continuous current of 120 A, it handles significant load requirements while maintaining signal integrity. The device operates within a voltage range of 440 VAC and includes a leakage current specification of 20 mA to ensure safety compliance. Certified by UL and CSA agencies, this component meets rigorous international standards for electromagnetic interference suppression.

Feature Summary

• Provides effective attenuation of electromagnetic interference across three-phase power lines
• Features robust chassis mounting design suitable for heavy-duty industrial enclosures
• Incorporates screw termination style for reliable and secure electrical connectivity

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• General purpose power line filtering

Procurement Notes

Verify the specific suffix BBSD against official TE Connectivity documentation to confirm exact physical dimensions and terminal configurations. Ensure compatibility with existing chassis cutouts and screw types before integration. Cross-reference the latest datasheet for any recent product change notices or certification updates that may affect installation requirements.

Selection Notes

Select this component when high-current three-phase filtering is required for sensitive industrial equipment. Compare leakage current specifications against safety regulations applicable to your region. Evaluate thermal management needs based on the 85°C maximum operating temperature limit. Confirm that the 440 VAC rating aligns with your system's nominal voltage levels.

Part Context

This part belongs to the KE series of power line filters from TE Connectivity Corcom Filters. The series is engineered for high-performance EMI/RFI suppression in industrial settings. Components in this family typically offer standardized mounting options and certified safety ratings for global deployment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
