Product Detailed Parameters
- Description：LINE FLTR 440VAC 120A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：120 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

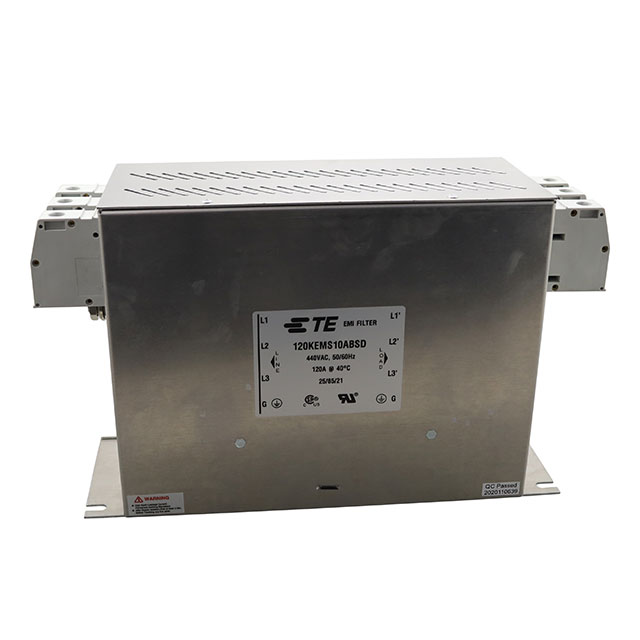

The 120KEMS10ABSD is a three-phase high-performance EMI power line filter manufactured by TE Connectivity Corcom. It features a single-stage design with a Delta configuration, rated for 440 VAC and 120 A. The unit utilizes chassis mounting with quick connect and screw termination types. Operating at 50 Hz or 60 Hz, it maintains a leakage current of 11 mA. This component holds UL and CSA compliance certifications.
Feature Summary
- Provides high-performance electromagnetic interference mitigation in a single-stage Delta configuration
- Engineered for robust operation at 440 VAC and 120 A continuous current
- Supports secure installation via chassis mount with combined quick connect and screw terminations
Applications
- Industrial automation machinery requiring three-phase power conditioning
- Climate control systems needing EMI suppression
- General purpose industrial equipment operating on 440 VAC networks
Procurement Notes
Verify the obsolete part status before procurement planning. Confirm that the specific termination requirements match your system's quick connect and screw interfaces. Ensure the chassis mounting dimensions align with your enclosure specifications. Check for available replacement alternatives due to discontinuation.
Selection Notes
Select this model when a single-stage Delta filter is required for 120 A applications. Ensure the 11 mA leakage current meets safety standards for your specific installation. Verify compatibility with 440 VAC systems and 50/60 Hz frequencies. Consider the chassis mount form factor for panel integration needs.
Part Context
This component belongs to the KEM-BS series of power line filters from TE Connectivity Corcom. It is designed for general-purpose industrial environments where significant current handling and EMI reduction are necessary. The Delta configuration distinguishes it from Wye-based variants within the broader product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. As the part status is obsolete, consult manufacturer resources for direct replacements or updated series equivalents.
