Product Detailed Parameters
- Description：LINE FLTR 520VAC 120A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：120 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

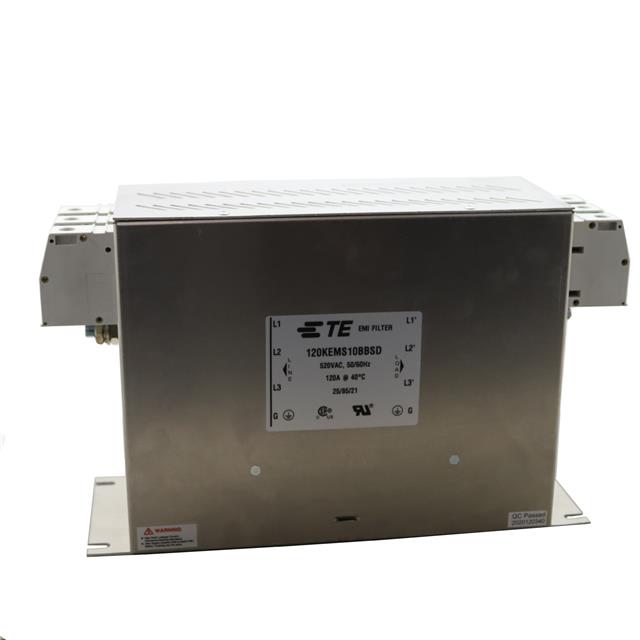

The TE Connectivity Corcom Filters 120KEMS10BBSD is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It features a single-stage configuration with a rated AC voltage of 520V and a current capacity of 120A at 50/60Hz operating frequency. The unit utilizes terminal block connections and flange mount installation, supporting an operating temperature range from -25°C to +85°C.
Feature Summary
- Three-phase Delta configuration for industrial power applications
- Single-stage EMI/RFI filtering architecture
- Chassis mount design with flange installation
- Terminal block connection style
Applications
- Industrial power distribution systems
- Electromagnetic interference suppression in heavy machinery
- High-current AC power line conditioning
Procurement Notes
Verify the exact electrical ratings and physical dimensions against the official manufacturer datasheet before integration. Confirm that the terminal block interface matches your wiring infrastructure. Ensure the chassis mounting requirements align with your enclosure specifications. Check for any recent product change notices or obsolescence alerts directly from TE Connectivity.
Selection Notes
Select this component when a three-phase Delta configuration is required for high-current applications up to 120A. The single-stage design offers a balance between performance and size. Ensure the 520VAC rating meets your system voltage requirements. Verify that the terminal block termination method is compatible with your assembly process and that the thermal operating range suits your environment.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial use. The Corcom brand is recognized for robust EMI/RFI solutions. This specific model represents a high-current, three-phase solution within their broader portfolio of electromagnetic compatibility components.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity for direct replacements or updated equivalents.
