1212256

Overview

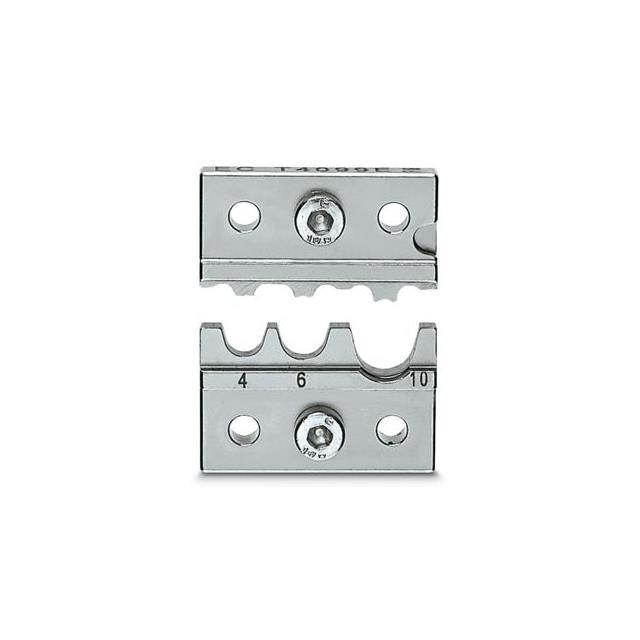

Phoenix Contact part number 1212256 is a crimp insert (die) designed for use with the CF 500 automatic crimping device. It features an indent crimp compression method suitable for coaxial and RF connections. The component supports a metric cross-section range of 4 mm² to 10 mm². The die is constructed from silver-colored material and originates from Germany.

Feature Summary

• Designed specifically for integration with the CF 500 automatic crimping system
• Utilizes indent crimp compression technology for secure connections
• Engineered for coaxial and RF cable termination applications

Applications

• Coaxial cable crimping
• RF connection termination
• Automated assembly using CF 500 equipment

Procurement Notes

Verify that the specific application requires the CF 500 automatic crimping system, as this die is not compatible with manual tools. Confirm the required cross-section falls within the 4 mm² to 10 mm² range. Ensure the production environment utilizes the correct Phoenix Contact CF 500 machine model for proper fit and function.

Selection Notes

Select this component when automated precision is required for coaxial or RF terminations. It is intended exclusively for use with the CF 500 series machinery. Consider the indent crimp method if it aligns with the specific mechanical requirements of the target cable assembly compared to other compression types.

Part Context

This item belongs to the Phoenix Contact CF 500 accessory line, which provides specialized tooling for high-volume automated crimping operations. These dies ensure consistent quality in industrial automation settings where standard hand tools are insufficient for throughput or precision demands.

Replacement Considerations

No public substitute part numbers are documented for this specific die configuration.
