1212726

Overview

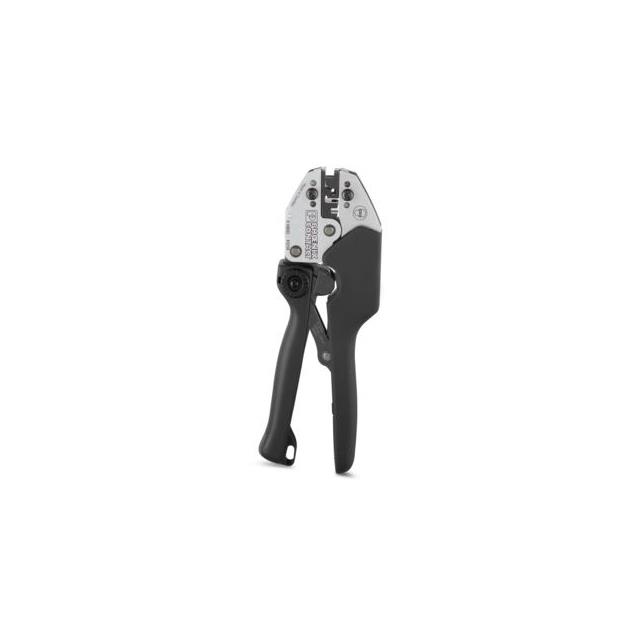

The Phoenix Contact CRIMPFOX-SCA 2,5-M (Part Number 1212726) is a hand crimping tool designed for uninsulated flat slip-on sleeves with angled contacts. It supports wire cross-sections ranging from 1 mm² to 2.5 mm² and utilizes B-type crimping technology. The device features marked die stations to ensure precise processing of corresponding cross-sections and includes an unlockable pressure lock mechanism.

Feature Summary

• Designed specifically for uninsulated 6.3 mm left-angled flat slip-on sleeves
• Features marked die stations for precise processing of specified cross-sections
• Incorporates an unlockable pressure lock mechanism for secure operation

Applications

• Crimping uninsulated terminals within the 1 mm² to 2.5 mm² range
• Processing 6.3 mm left-angled flat slip-on sleeves
• B-type crimping applications in electrical assembly

Procurement Notes

Verify that the required terminal type matches the tool's specification for uninsulated 6.3 mm left-angled flat slip-on sleeves. Confirm the wire cross-section range of 1 mm² to 2.5 mm² aligns with your project requirements. Ensure the B-crimp standard is compatible with your existing components before procurement.

Selection Notes

Select this model when working exclusively with uninsulated angled slip-on sleeves in the 1 to 2.5 mm² range. It is suitable for applications requiring B-type crimps. Consider alternative models if insulated terminals or different contact geometries are needed.

Part Context

This component belongs to the Phoenix Contact CRIMPFOX series, which provides specialized hand tools for various terminal types. The SCA designation indicates its specific application for slip-on sleeves. This tool complements other Phoenix Contact crimping solutions by addressing specific angled terminal requirements.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
