1212751

Overview

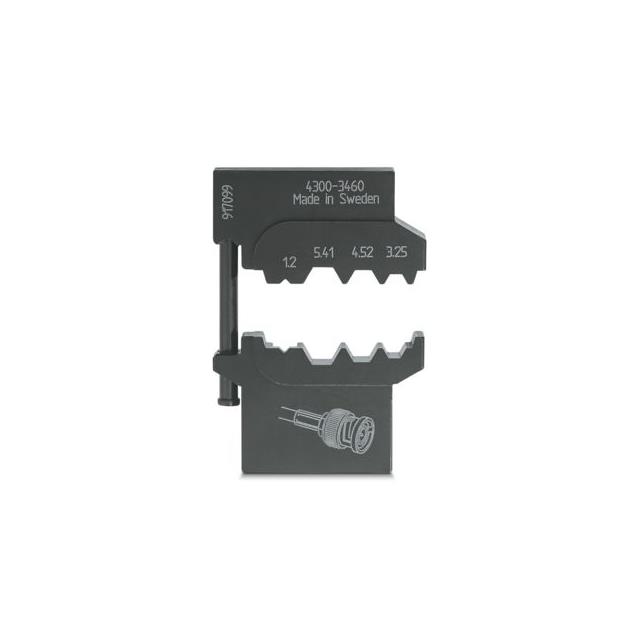

Phoenix Contact part number 1212751 is a coaxial crimp die designed for use with the CRIMPFOX-M series of universal crimping tools. This specific component features a HEX compression mechanism and is engineered to achieve precise crimping dimensions, including a crimp width of 1.20 mm and a crimp width of 3.25 mm. It serves as a replacement jaw or die insert for maintaining tool functionality in professional electrical assembly tasks.

Feature Summary

• Designed specifically for coaxial cable termination applications
• Utilizes a hexagonal compression geometry for consistent contact formation
• Functions as a replaceable insert for the CRIMPFOX-M universal crimping tool system

Applications

• Coaxial cable assembly in industrial control panels
• Maintenance and repair of CRIMPFOX-M crimping tools
• Professional electrical installation requiring standardized coaxial connections

Procurement Notes

Verify that the intended application involves coaxial cables, as this die is not suitable for standard wire terminals. Confirm compatibility with the specific CRIMPFOX-M tool model in possession, as different variants may require distinct dies. Check regional availability restrictions, as distribution channels may limit sales in certain territories. Ensure the tool housing is compatible with the HEX compression design specified for this part number before ordering.

Selection Notes

Select this component only when replacing worn or damaged dies for coaxial crimping operations within the TOOL fox ecosystem. It is critical to match the required crimp width specifications, specifically 1.20 mm and 3.25 mm, to the cable connectors being used. This part is an accessory rather than a standalone tool, so ensure the primary CRIMPFOX-M handle is available for operation.

Part Context

This item belongs to the Phoenix Contact TOOL fox series, which provides specialized equipment for field wiring and panel building. The CRIMPFOX-M line focuses on universal crimping capabilities, allowing technicians to use a single tool body with interchangeable dies for various connector types. Part 1212751 specifically addresses the need for reliable coaxial terminations within this modular tool framework.

Replacement Considerations

Official substitute part numbers are not explicitly confirmed in the provided documentation. Verify exact dimensional compatibility with existing dies before attempting cross-referencing with generic aftermarket components.
