1212752

Overview

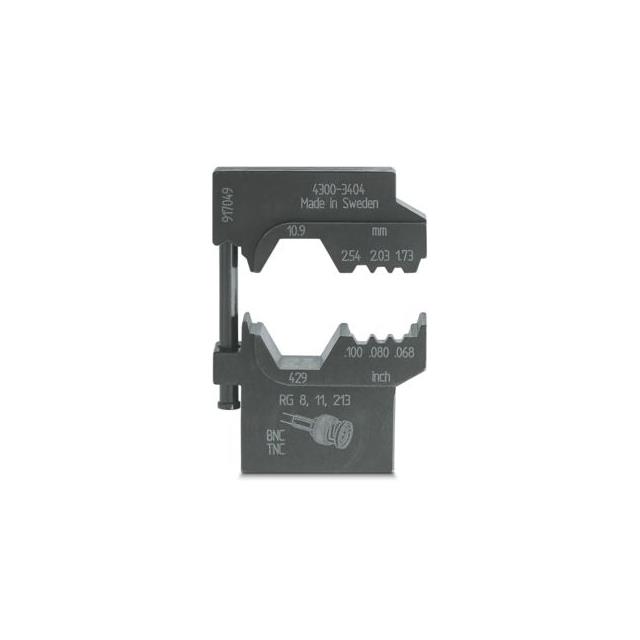

The Phoenix Contact 1212752 is a CRIMPFOX-M CX-11/DIE crimp insert designed for use with coaxial type crimp tools. This specific die set facilitates HEX-crimping processes, ensuring secure and reliable connections for coaxial connectors. The component is characterized by its black coloration and is engineered to work within the CRIMPFOX-M series tooling ecosystem. It serves as a specialized replacement or accessory part for maintaining consistent crimp quality in professional electrical assembly applications involving coaxial cabling.

Feature Summary

• Designed specifically for coaxial type crimp applications
• Facilitates HEX-crimping processes for secure connector attachment
• Compatible with the CRIMPFOX-M series of crimping tools

Applications

• Assembly of coaxial connectors using CRIMPFOX-M tools
• Maintenance and replacement of worn dies in professional crimping equipment
• Electrical installation requiring standardized coaxial crimping

Procurement Notes

Verify that the existing crimping tool belongs to the CRIMPFOX-M series before procurement, as this die is model-specific. Confirm the requirement for HEX-crimping functionality matches the project's coaxial connector specifications. Ensure the black-colored insert aligns with the required tool configuration. Cross-reference the part number 1212752 with official Phoenix Contact documentation to confirm compatibility with the specific tool handle being used.

Selection Notes

Select this component only when working with coaxial connectors that require HEX-crimping techniques. It is intended for users who already possess compatible CRIMPFOX-M hand tools. Consider this die if standard crimping results are inconsistent or if the original die is damaged. It is not a standalone tool but an essential accessory for maintaining precision in coaxial termination tasks.

Part Context

This part belongs to the Phoenix Contact CRIMPFOX-M product family, which specializes in high-quality crimping solutions for industrial and commercial electrical installations. The CX-11 designation indicates its specific application within the broader range of coaxial crimping accessories offered by the manufacturer. It represents a modular approach to crimping tool maintenance and customization.

Replacement Considerations

Ensure the replacement die matches the original CRIMPFOX-M tool model exactly. Verify that the new insert supports the same coaxial connector types as the previous one. Check for any updates in the CRIMPFOX-M series that might affect die compatibility.
