1214H-8.000G3ATSTK

Overview

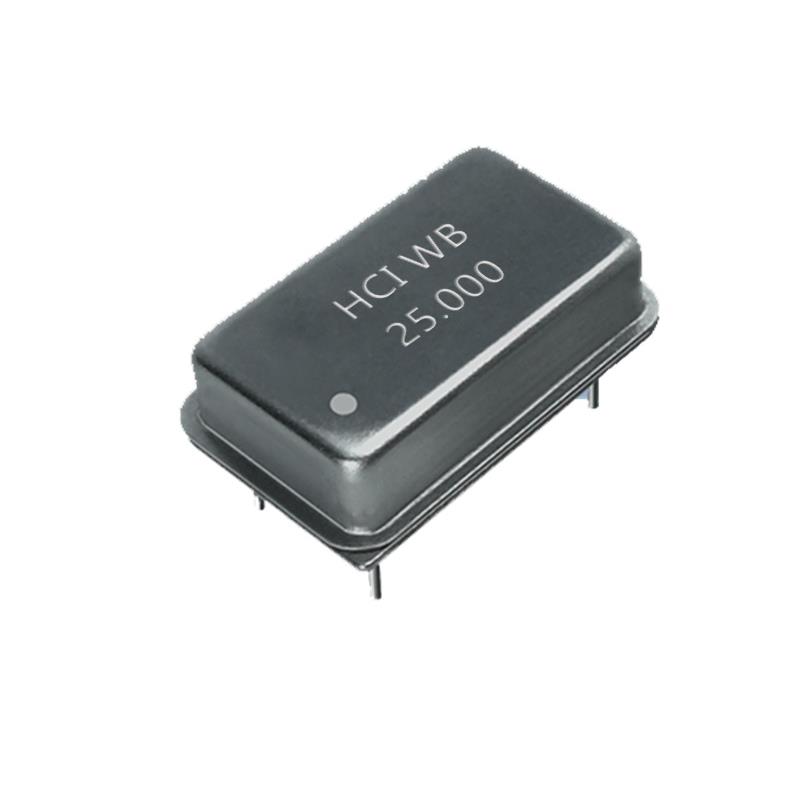

The 1214H-8.000G3ATSTK is a quartz frequency control unit manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates as an HCMOS oscillator with a nominal frequency of 8.000 MHz. The device supports a supply voltage of 3V and maintains a frequency stability of ±30ppm. It is designed for through-hole mounting and functions within an operating temperature range of -55°C to 85°C.

Feature Summary

• Generates HCMOS output signals
• Supports 3V supply voltage operation
• Designed for through-hole mounting applications

Applications

• General electronic circuit timing
• Microcontroller clock sources
• Digital signal processing systems

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct electrical parameters and package configuration. Confirm that the component meets required environmental specifications for the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component based on its 3V supply requirement and HCMOS output compatibility. Ensure the through-hole package fits the target PCB layout. Verify that the ±30ppm stability and -55°C to 85°C temperature range align with system performance requirements.

Part Context

This part belongs to the 1214H series of quartz frequency control units produced by Suzhou Hangjing Elec&Tech Co.,Ltd. The company specializes in research, development, and production of quartz frequency controlling components. This specific model represents a standard oscillating solution within their product portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
