1215393

Overview

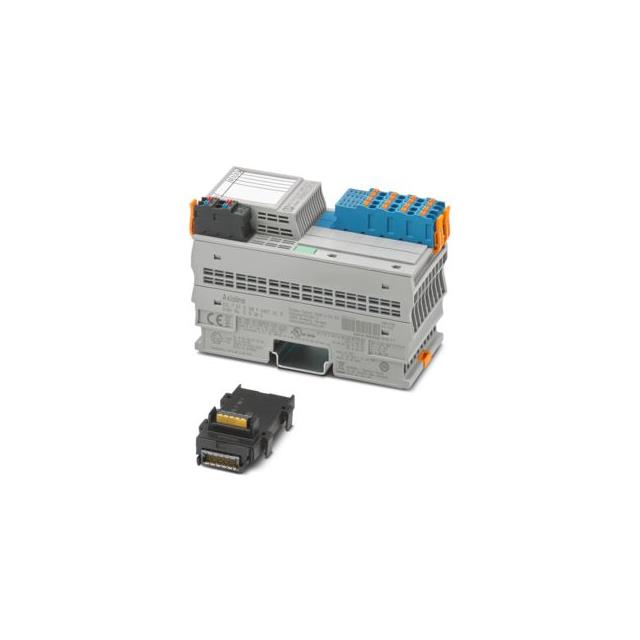

Phoenix Contact part number 1215393 is an Axioline F analog input module designed for hazardous area applications. It features eight passive analog inputs with HART protocol support. The module operates within a voltage range of 5V to 300V and utilizes 12-bit A/D conversion for current signals including 0-20 mA and 4-20 mA ranges. It functions reliably in temperatures from -25°C to +60°C. The device supports other bus systems but does not support KNX protocols, ensuring precise data acquisition in industrial automation environments.

Feature Summary

• Provides eight passive analog inputs compatible with HART protocol
• Designed specifically for use in hazardous areas (Ex IS)
• Supports standard current measurement ranges for industrial sensors

Applications

• Hazardous area process monitoring
• Industrial automation signal acquisition
• Embedded systems requiring isolated analog input

Procurement Notes

Verify the complete ordering code matches the specific configuration requirements. Confirm that the hazardous area certification aligns with local safety regulations. Ensure compatibility with the existing Axioline F master station before procurement. Check for any specific suffix variations that may alter pinout or certification status.

Selection Notes

Select this module when eight-channel analog input capability is required in explosive atmospheres. It is suitable for applications needing HART communication alongside standard current loops. Consider thermal limits if ambient temperatures exceed the specified operating range. Verify power supply compatibility with the 24VDC spring terminal interface.

Part Context

This component belongs to the Phoenix Contact Axioline F series, which provides modular I/O solutions for distributed automation. The Axioline F system allows for flexible expansion and high-speed data exchange. This specific module integrates into the broader ecosystem of Phoenix Contact field-level devices.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Phoenix Contact catalogs for direct replacements or updated series equivalents.
