1221469

Overview

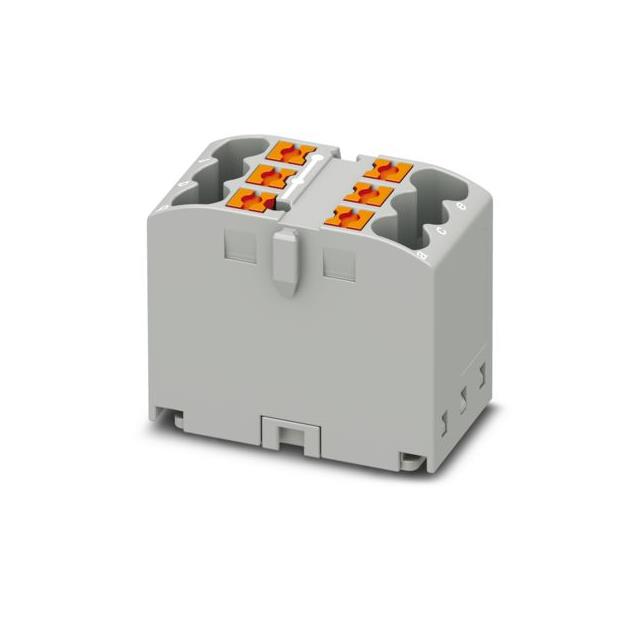

The Phoenix Contact 1221469 is a six-position distribution block featuring Ex e certification for use in hazardous areas. It supports a rated voltage of 440 V during direct mounting and handles a rated current of 22.5 A with 2.5 mm² conductors, or up to 27 A with 4 mm² conductors. The unit exhibits a contact resistance of 0.6 mΩ. Designed for flexibility, it allows mounting via DIN rail adapters, direct flange attachment, or free-hanging installation. The housing is gray.

Feature Summary

• Ex e certified basic terminal block suitable for explosive atmospheres
• Versatile mounting options including DIN rail adapter, direct flange, and free-hanging configurations
• Internally bridged six-position design for efficient power distribution

Applications

• Installation in hazardous areas requiring Ex e protection
• Power distribution within control cabinets using DIN rail adapters
• Direct surface mounting applications utilizing the integrated flange
• Free-hanging cable management setups

Procurement Notes

Verify that the specific application environment meets Ex e certification requirements before deployment. Confirm conductor cross-section compatibility, as rated current varies between 22.5 A for 2.5 mm² and 27 A for 4 mm² wires. Ensure the chosen mounting method aligns with the mechanical constraints of the enclosure, whether using a DIN rail adapter, direct flange, or free-hanging setup. Check local regulations for hazardous area compliance.

Selection Notes

Select this component when Ex e certification is mandatory for the intended installation zone. Consider the required current capacity relative to the wire gauge; use 2.5 mm² for 22.5 A loads or 4 mm² for higher currents up to 27 A. Evaluate the physical installation space to determine if DIN rail, direct, or free-hanging mounting is feasible. The gray color coding may assist in visual identification within complex wiring schemes.

Part Context

This part belongs to the PTFIX series from Phoenix Contact, specifically designed as a distribution block. The model number 1221469 corresponds to the PTFIX 6X2,5 GY-EX variant. It serves as a base terminal block providing multiple output positions from a single input, facilitating organized power routing in industrial electrical systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing busbar systems and mounting hardware before considering alternative models from other manufacturers.
