1232302

Overview

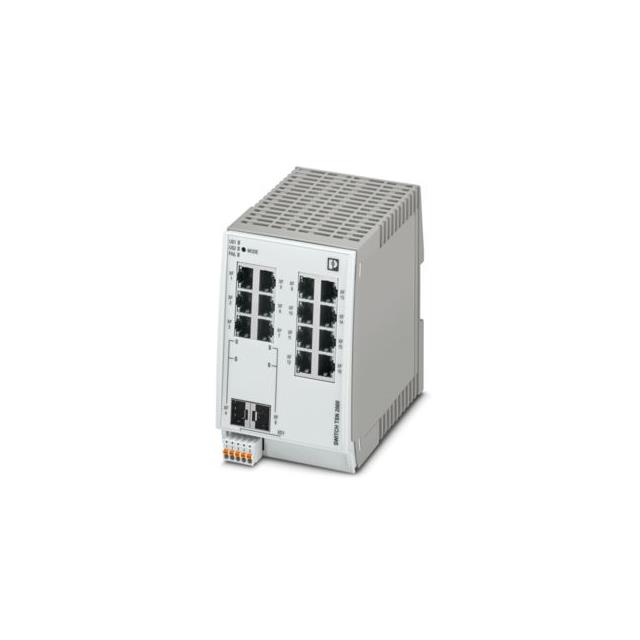

The Phoenix Contact 1232302 is a managed industrial Ethernet switch belonging to the FL SWITCH TSN series. It features a fixed configuration with 14 RJ45 ports and two SFP slots, supporting Time-Sensitive Networking (TSN) for deterministic data transmission. The device operates on a 24 VDC power supply and is designed for robust performance in demanding industrial environments.

Feature Summary

• Supports Time-Sensitive Networking (TSN) protocols for synchronized, low-latency communication
• Managed switching capabilities allow for detailed network monitoring and configuration
• Combines copper connectivity via RJ45 ports with fiber optic expansion through SFP slots

Applications

• Industrial automation systems requiring deterministic data exchange
• Factory floor networks integrating real-time control signals
• Infrastructure connecting PLCs, drives, and I/O devices via TSN

Procurement Notes

Verify that the specific order matches part number 1232302 to ensure the inclusion of TSN functionality. Confirm that the required firmware version supports the intended TSN standards. Check physical dimensions and mounting requirements against the installation space. Ensure the 24 VDC power supply meets the device's electrical specifications.

Selection Notes

Select this model when deterministic networking is required alongside standard Ethernet connectivity. The combination of 14 copper ports and 2 SFP slots provides flexibility for mixed media connections. Managed features are essential for networks needing advanced diagnostics and traffic prioritization beyond basic switching.

Part Context

This component is part of the FL SWITCH TSN family from Phoenix Contact, designed for Industry 4.0 applications. It integrates seamlessly into existing industrial Ethernet infrastructures while providing the synchronization capabilities necessary for modern automated production lines and process control systems.

Replacement Considerations

Check for updated revisions within the same FL SWITCH TSN series. Verify compatibility with existing network management software before substituting. Ensure any alternative model supports the same TSN standards and port configuration.
