1233147

Overview

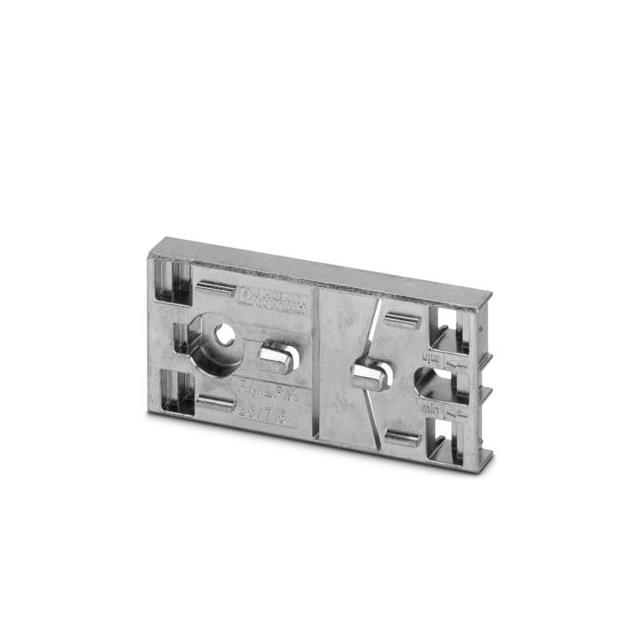

The Phoenix Contact 1233147 is a RAILFIX series mounting adapter designed for securing NS 35/7,5 DIN rails to control cabinet panels or housing walls. Constructed from die-cast zinc with a gray finish, it utilizes a screw mounting type for stable installation. The component measures 89mm in width, 40mm in height, and 17.8mm in length, providing a robust mechanical interface for electrical enclosure accessories.

Feature Summary

• Die-cast zinc construction for durability
• Specific design for NS 35/7,5 DIN rails
• Screw-based mounting mechanism

Applications

• Attaching DIN rails to mounting panels
• Securing rails to control cabinet housing walls

Procurement Notes

Verify the part number 1233147 against official Phoenix Contact documentation to confirm compatibility with NS 35/7,5 DIN rails. Ensure the die-cast zinc material specification matches project requirements. Confirm that the screw mounting method aligns with available panel infrastructure before procurement.

Selection Notes

Select this adapter when rigid fixation of standard 35mm top-hat rails to flat surfaces is required. The die-cast zinc body offers corrosion resistance suitable for industrial environments. Verify dimensional constraints fit within the intended enclosure space before integration.

Part Context

This component belongs to the Phoenix Contact RAILFIX series, which provides specialized hardware for electrical enclosure assembly. It serves as a critical interface between standard DIN rails and structural cabinet components, ensuring secure positioning of terminal blocks and other modular devices.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
