1234229

Overview

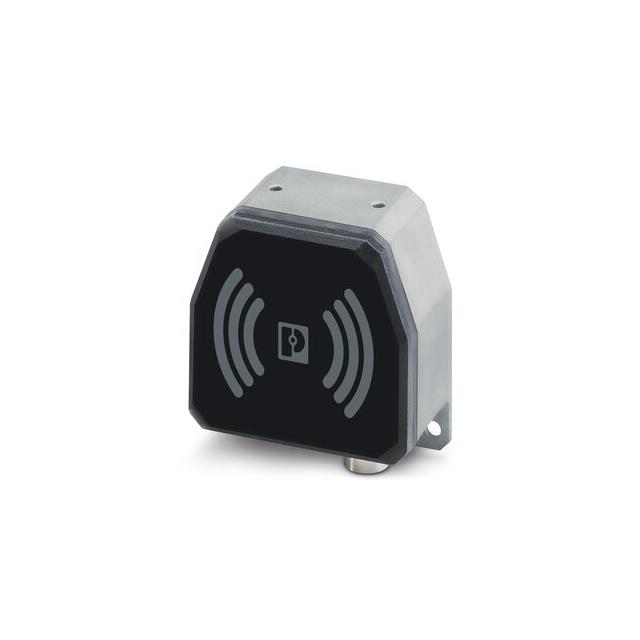

Phoenix Contact part number 1234229 is a NEARFI P 2A R remote coupler designed for contactless power transmission. It operates on a 24 V DC supply and delivers 2 A output current. The device features an M12 screw connection interface and provides IP65 protection rating. It supports a coupling range of up to 10 mm and is compatible with the NEARFI P 2A B unit.

Feature Summary

• Enables contactless power transmission in the centimeter range
• Compact housing rated for IP65 environmental protection
• Supports flexible mounting in numerous positions and angles

Applications

• Remote coupling for contactless power systems
• Integration with NEARFI P 2A B units
• Industrial automation requiring isolated power transfer

Procurement Notes

Verify compatibility with specific NEARFI system components before procurement. Confirm that the M12 connection type matches existing cabling infrastructure. Ensure the operating environment meets the IP65 protection requirements. Check for any export documentation needs if shipping from the United States.

Selection Notes

Select this model when a remote coupler for contactless power is required. It is specifically designed to work with the NEARFI P 2A B unit. Ensure the application requires 24 V DC input and 2 A output capability. Verify that the 10 mm coupling range suits the physical installation constraints.

Part Context

This component belongs to the NEARFI product series by Phoenix Contact, which specializes in contactless power transmission solutions. The NEARFI P 2A R serves as the remote counterpart to other units in the series, facilitating wireless energy transfer over short distances in industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
