1238180

Overview

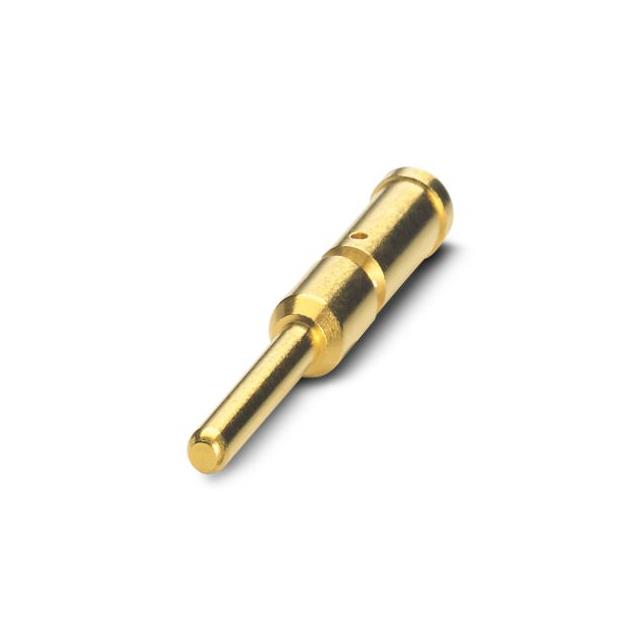

Phoenix Contact part number 1238180 is a male crimp contact belonging to the SF series. It features a pin configuration with a contact size of 2 mm. The component is designed for wire sizes ranging from 1.5 mm² to 4 mm², corresponding to AWG 12-16. The contact material is CuZn with a gold metal surface finish. This single contact type ensures vibration- and temperature-resistant assembly with high tensile strength and low contact resistance.

Feature Summary

• Vibration- and temperature-resistant crimping connection
• High tensile strength of the connection
• Low contact resistance

Applications

• Industrial automation systems
• Electrical control panels
• Power distribution networks

Procurement Notes

Verify the specific ordering suffix and packaging quantity against the official Phoenix Contact datasheet before procurement. Ensure compatibility with the intended crimping tool and mating connector housing. Confirm that the gold plating specification meets the environmental requirements of the installation site. Cross-reference the part number 1238180 with the latest product documentation to avoid discrepancies in material or dimensional specifications.

Selection Notes

Select this component when a robust male crimp contact is required for wires between 1.5 mm² and 4 mm². The 2 mm contact size dictates the mating interface dimensions. Consider the CuZn base material and gold surface for corrosion resistance and conductivity. Ensure the application environment supports the temperature ratings associated with the SF series crimp contacts.

Part Context

This part belongs to the SF series of circular connector contacts manufactured by Phoenix Contact. The SF series is widely used in industrial interconnect solutions requiring reliable signal and power transmission. Part 1238180 specifically denotes the male pin variant within this family, distinguished by its 2 mm contact size and specific wire range capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mating compatibility with existing housings if considering alternative manufacturers.
