1238545

Overview

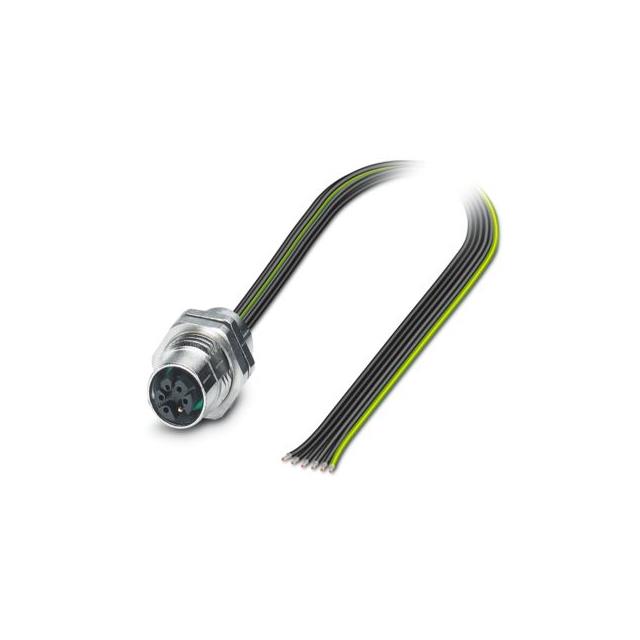

Phoenix Contact part number 1238545 is a circular cable assembly designed for rear mounting on equipment panels. It features an M12 female socket connector with five positions, including one protective earth contact. The assembly utilizes individual wires terminated to the connector and includes a cable length of 0.5 meters. The strain relief interface employs an M16 x 1.5 thread specification suitable for secure panel installation. This component serves as a device connector intended for power applications within industrial control environments.

Feature Summary

• Designed for rear mounting installation on equipment panels
• Features an M12 female socket connector configuration
• Includes a dedicated protective earth contact position
• Utilizes an M16 x 1.5 strain relief interface

Applications

• Plant engineering connections
• Controller system interconnections
• Electrical device engineering assemblies

Procurement Notes

Verify that the specific M12 female socket configuration matches the mating requirements of the target equipment. Confirm that the 0.5-meter cable length accommodates the physical routing constraints within the control cabinet or panel. Ensure the M16 x 1.5 strain relief specification aligns with the panel cutout dimensions and mounting hardware available in the installation environment.

Selection Notes

Select this component when a rear-mount M12 power connector with integrated ground is required. The five-position layout supports standard power and signal combinations. Consider the fixed 0.5-meter cable length during mechanical design phases. Verify compatibility with the specific M16 panel entry requirements before finalizing the bill of materials.

Part Context

This cable assembly belongs to Phoenix Contact's SACC series of pre-wired device connectors. These components are engineered for reliable connectivity in industrial automation settings. The product integrates the connector housing, wiring, and strain relief into a single unit to simplify installation processes compared to field-assembled alternatives.

Replacement Considerations

The equivalent part number SACC-DSI-M12FSM-5PE-M16XL/0,5X represents the same technical specifications. Verify that any substitute maintains the identical M12 female socket gender and five-position pinout arrangement.
