1238579

Overview

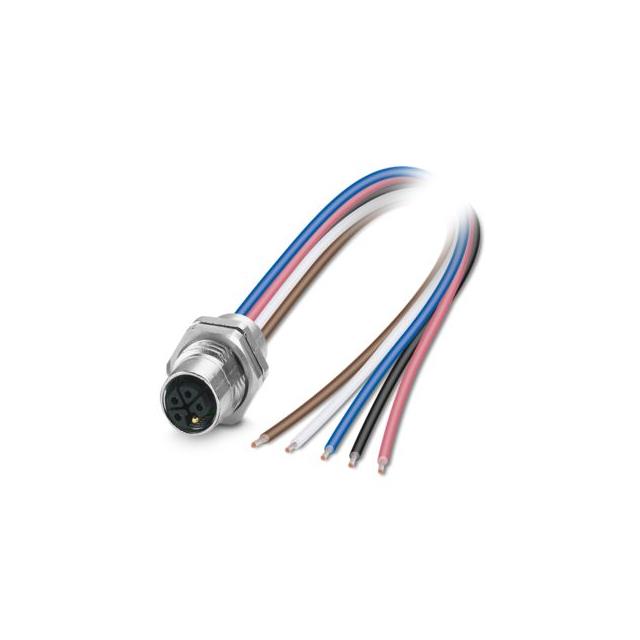

Phoenix Contact part number 1238579 is a device connector designed for rear mounting in industrial automation applications. It features a 5-position socket with M12 L-coding, configured for power transmission on a free cable end. The unit utilizes individual wires with a specified cross-section of 2.50 mm² and includes a fixed cable length of 1 meter. Electrical ratings include a rated voltage of 63 V in accordance with IEC 61076-2-101, a nominal voltage of 63 V, and a nominal current capacity of 16 A. The component supports a rated surge voltage of 1.5 kV.

Feature Summary

• Designed for rear mounting installation to facilitate secure device connections.
• Utilizes M12 L-coding to ensure correct mating for power applications.
• Constructed with individual wire termination for flexible field assembly.

Applications

• Industrial automation control panels
• Machine tool wiring systems
• Power distribution units

Procurement Notes

Verify the specific product code 1238579 against official Phoenix Contact documentation to confirm the 1-meter cable length and 2.50 mm² wire specification. Ensure compatibility with M16 x 1.5 thread requirements for the intended mounting environment. Cross-reference technical datasheets to validate electrical ratings before integration into critical power circuits.

Selection Notes

Select this component when a rear-mount M12 L-coded socket is required for power applications. Confirm that the system design accommodates individual wire termination rather than pre-molded cables. Verify that the 16 A nominal current rating meets the load requirements of the connected equipment.

Part Context

This connector belongs to Phoenix Contact's circular connector portfolio for metric industrial automation. It provides versatile solutions for transmitting signals, data, and power. The product line includes various designs such as straight or angled connectors, molded or field-assembled options, catering to diverse industrial connectivity needs.

Replacement Considerations

Consult Phoenix Contact's cross-reference tools for suitable alternatives from other manufacturers if supply constraints exist. Ensure any substitute maintains identical M12 L-coding, 5-position configuration, and rear-mounting capabilities to preserve mechanical and electrical compatibility.

FAQ

What coding type does this connector use?

The connector uses M12 L-coding, which is specifically designated for power applications.

Is this connector shielded?

Based on the product details, this specific variant is described without explicit shielding mentions in the provided summary, focusing on its power transmission capabilities.
