1239739

Overview

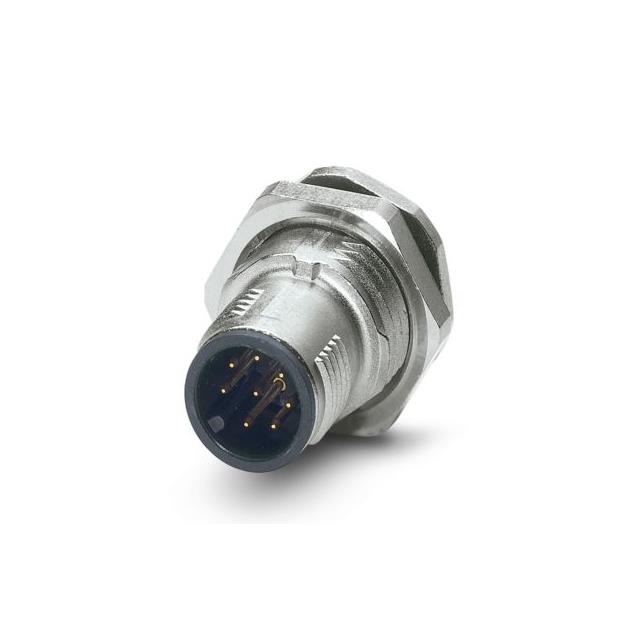

The Phoenix Contact 1239739 is an 8-position circular connector assembly designed for device-side applications. It features a male M12 connector with A-coding and straight orientation. The unit utilizes solder pins for termination and includes an M16 x 1.5 thread type for secure mounting. This rear-mounting receptacle connector is constructed from lead-free materials compliant with RoHS standards, ensuring environmental safety without shielding.

Feature Summary

• Rear wall mounting design for secure installation
• Male connector configuration with A-coding
• Solder pin termination method
• Lead-free construction compliant with RoHS

Applications

• Industrial control panel wiring
• Sensor and actuator connections
• Automation system interconnects
• Device side circular connector assemblies

Procurement Notes

Verify the specific ordering code SACC-DSI-M12MS-8CON-M16X against the manufacturer's current catalog to ensure compatibility with existing system requirements. Confirm that the M16 x 1.5 thread specification matches the mounting panel thickness and hole dimensions. Ensure the A-coding aligns with the mating female connector to prevent mechanical mismatch. Check for any updated RoHS compliance declarations if required by specific project regulations.

Selection Notes

Select this component when a rear-mounting M12 male connector with eight positions is required. The A-coding ensures correct polarity and prevents misalignment with compatible sockets. The solder pin termination is suitable for PCB or cable harness integration where permanent connection is preferred. Verify that the straight orientation fits within the available spatial constraints of the enclosure.

Part Context

This part belongs to the Phoenix Contact circular connector family, specifically designed for robust industrial environments. The SACC series provides reliable signal and power transmission solutions. The 1239739 model represents a standard configuration for general-purpose automation tasks requiring durable M12 interfaces.

Replacement Considerations

Direct substitutes must match the 8-position count, M12 male form factor, A-coding, and M16 x 1.5 thread. Verify that alternative brands offer identical solder pin termination and rear-mounting capabilities to ensure interchangeability without mechanical modification.
