1239986

Overview

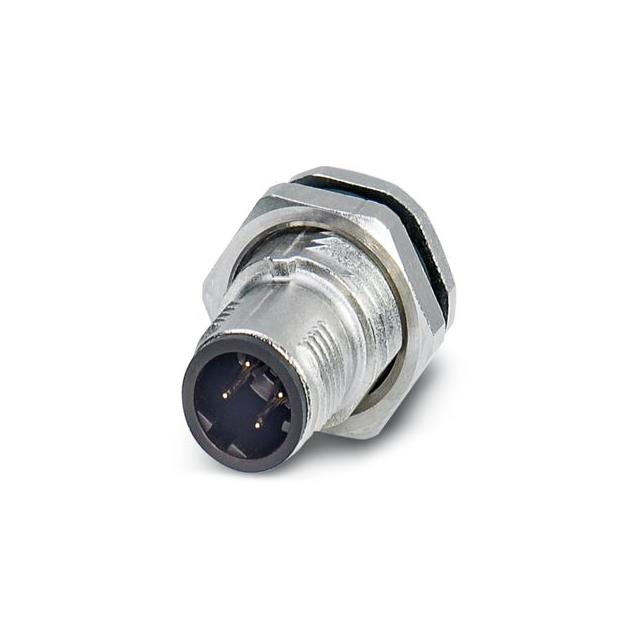

Phoenix Contact part number 1239986 is a rear-mounting receptacle connector belonging to the SACC-DSI-MSD series. It features a 4-pole configuration with M12 SPEEDCON male contacts and D-polarization. The connector supports wave soldering and accommodates wire cross-sections up to 0.34 mm². Constructed with lead-free materials compliant with RoHS II directives, it is designed for secure device connections in industrial automation environments.

Feature Summary

• Rear-mounting receptacle design for panel or device integration
• M12 SPEEDCON interface with D-polarization for reliable mating
• Lead-free material construction adhering to RoHS II standards

Applications

• Industrial automation device connections
• Sensor and actuator cable assemblies
• Control cabinet wiring systems

Procurement Notes

Verify the complete part number including suffixes such as SCOX against official Phoenix Contact documentation to ensure correct polarization and contact type. Confirm that the specified wire cross-section of 0.34 mm² aligns with your cabling requirements. Ensure compliance with RoHS II regulations is required for your specific application environment before procurement.

Selection Notes

Select this component when a rear-mounting M12 connector with four poles is required for device interfaces. The D-polarization ensures correct orientation during installation. Verify compatibility with wave soldering processes if automated assembly is utilized. Ensure the housing size and mounting constraints fit the intended enclosure design.

Part Context

This component is part of the Phoenix Contact SACC series, which provides standardized solutions for industrial connectivity. The manufacturer specializes in electrical connection technology for electrification, networking, and automation sectors. This specific model addresses needs for robust, compact device connectors in complex industrial setups.

Replacement Considerations

Check for exact matches within the SACC-DSI-MSD series with identical pole counts and polarizations. Verify that any substitute maintains the same M12 SPEEDCON interface specifications and mounting style to ensure mechanical and electrical compatibility without redesign.
