123A-58E01

Edgeboard Connectors Overview

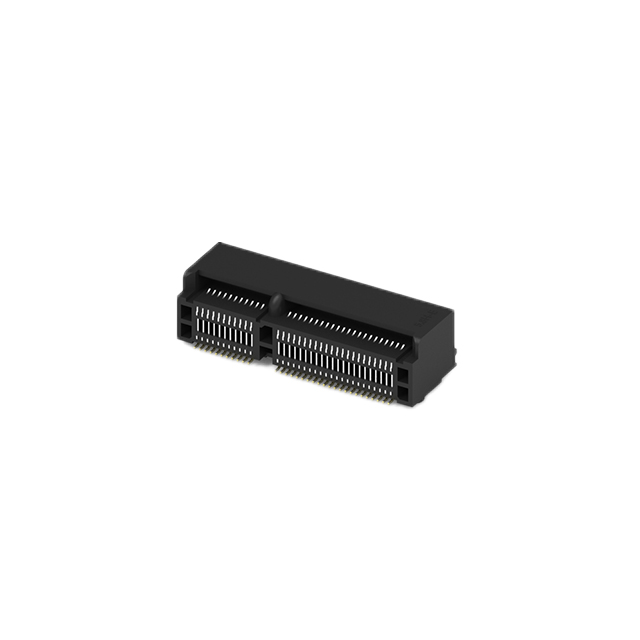

The ATTEND Technology 123A-58E01 is an M.2 connector featuring an E Key configuration with a stack height of 5.8mm. It utilizes a 67-position NGFF interface designed to support PCIe, SATA, and USB protocols. The component operates within a temperature range of -40°C to 85°C. Contacts are constructed from copper alloy with a gold flash finish. The unit is black in color and intended for edgeboard applications requiring compact wireless connectivity solutions.

Edgeboard Connectors Feature Summary

• Supports multiple high-speed interfaces including PCIe, SATA, and USB via the 67-position NGFF layout
• Engineered for compact device integration with a specific 5.8mm stack height profile
• Constructed with durable copper alloy contacts featuring a gold flash finish for reliable signal transmission

Edgeboard Connectors Applications

• Compact wireless communication modules
• Edge computing hardware boards
• IoT devices requiring M.2 expansion slots

Edgeboard Connectors Procurement Notes

Verify the exact keying configuration and pinout compatibility with target motherboard specifications before procurement. Confirm that the 5.8mm stack height aligns with mechanical enclosure constraints. Ensure the operating temperature range meets environmental requirements. Cross-reference the 67-position count against system design documents to guarantee electrical interface alignment.

Edgeboard Connectors Selection Notes

Select this component when a low-profile M.2 connection is required for wireless or storage expansion. The E Key designation indicates specific pin assignments suitable for data transfer protocols. Consider the physical dimensions and contact material properties for long-term reliability. Evaluate thermal management needs given the specified operating temperature limits.

Edgeboard Connectors Part Context

This part belongs to ATTEND Technology's portfolio of edgeboard connectors. The manufacturer specializes in various socket types including memory card sockets and I/O connectors. This specific model addresses the demand for standardized M.2 interfaces in space-constrained electronic assemblies.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical pinout compatibility if considering alternative suppliers.
