123A-85EA0

Edgeboard Connectors Overview

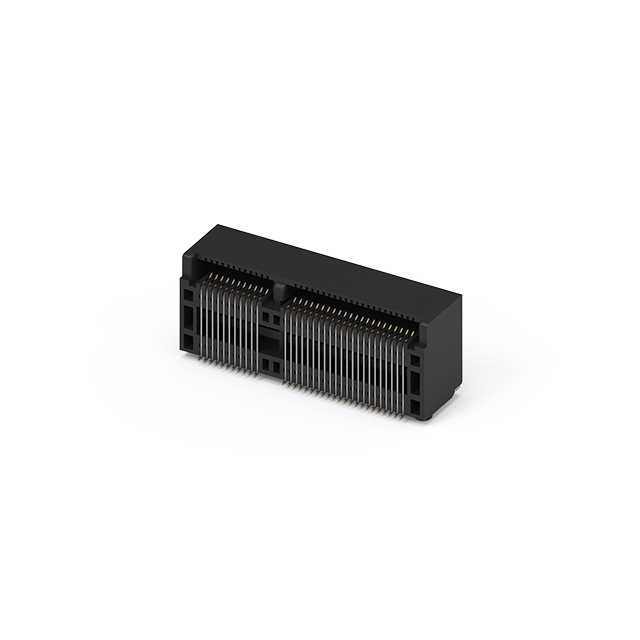

The ATTEND Technology 123A-85EA0 is a 67-position female edgeboard connector designed for M.2 (NGFF) Mini Cards with an E Key configuration. It features a 0.50mm pitch and gold-plated contacts to ensure reliable signal integrity. The component supports high-speed Gen4 performance, accommodating PCIe, SATA 3.0, and USB 3.0 protocols. Constructed with copper alloy contacts and a black housing, it utilizes surface mount technology in a right-angle orientation for compact wireless module integration.

Edgeboard Connectors Feature Summary

• Supports high-speed Gen4 data transmission standards
• Compatible with PCIe, SATA 3.0, and USB 3.0 interfaces
• Designed for stable connectivity in compact wireless modules

Edgeboard Connectors Applications

• M.2 wireless module integration
• Edgeboard connections
• Data transmission systems requiring NGFF support

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm packaging details such as tape and reel or cut tape options. Ensure the selected variant matches the required mounting orientation and contact plating specifications for your assembly process.

Edgeboard Connectors Selection Notes

Select this connector when an E-keyed M.2 interface is required for wireless applications. Confirm that the system design accommodates the right-angle surface mount footprint and the 67-pin density necessary for the intended protocol support.

Edgeboard Connectors Part Context

This component belongs to the 123A series of M.2 NGFF connectors from ATTEND Technology. The series offers various keying options including A, B, E, and M keys, all maintaining a consistent 0.5mm pitch and 67-contact architecture for standardized form factor compatibility.

Edgeboard Connectors Replacement Considerations

The 123A-85MA0 is a related model within the same series but utilizes an M Key configuration rather than the E Key found in the 123A-85EA0. Verify keying requirements before substitution.
