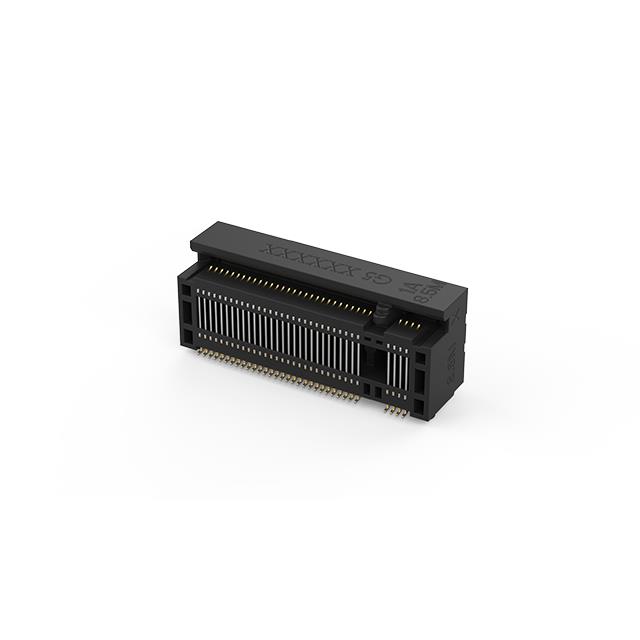

123A-85M02 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists ATTEND Technology. Its product description is M.2 GEN5 SOCKET, H8.5 M KEY 0.5. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 123A-85M02
- Description：M.2 GEN5 SOCKET, H8.5 M KEY 0.5
- Series：-
- Mfr：ATTEND Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Card Type：-
- Gender：-
- Number of Positions/Bay/Row：-
- Number of Positions：-
- Card Thickness：-
- Number of Rows：-
- Pitch：-
- Read Out：-
- Features：-
- Mounting Type：-
- Termination：-
- Contact Material：-
- Contact Finish：-
- Contact Finish Thickness：-
- Contact Type：-
- Color：-
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 123A-85M02
Edgeboard Connectors Overview
The ATTEND Technology 123A-85M02 is a female M.2 (NGFF) Mini Card connector featuring an M Key configuration with 67 positions. It utilizes a 0.50mm pitch and offers a stack height of 8.5mm. The component supports high-bandwidth interfaces including PCIe Gen5, SATA, and USB protocols. Gold-plated contacts ensure reliable signal transmission within the 123A series edgeboard connector family.
Edgeboard Connectors Feature Summary
- Supports PCIe Gen5, SATA, and USB interface protocols for high-speed data transmission
- Features an M Key design with 67 contact positions for secure card engagement
- Constructed with gold-plated contacts to maintain signal integrity
Edgeboard Connectors Applications
- High-performance computing systems requiring Gen5 bandwidth
- Wireless communication modules utilizing M.2 form factors
- Data storage devices interfacing via PCIe or SATA protocols
Edgeboard Connectors Procurement Notes
Verify that the specific order matches the 123A-85M02 part number to ensure correct M Key compatibility and 8.5mm stack height requirements. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure procurement channels provide valid traceability for the ATTEND Technology component.
Edgeboard Connectors Selection Notes
Select this connector when an M Key interface is required for M.2 cards with a maximum board thickness allowance of 8.5mm. The 67-position layout accommodates standard M.2 module pinouts supporting PCIe Gen5 and SATA signals. Verify mechanical clearance constraints against the 0.50mm pitch dimensions before finalizing the design.
Edgeboard Connectors Part Context
This component belongs to the ATTEND Technology 123A Series, which provides various M.2 NGFF connectors for data and wireless applications. The series includes multiple keying options such as A, B, E, and M keys with varying heights. The 123A-85M02 specifically addresses high-density interconnect needs in modern portable and industrial electronics.
Edgeboard Connectors Replacement Considerations
Direct substitutes include other M.2 M Key sockets with identical 67 positions and 8.5mm height specifications from compatible manufacturers. Cross-referencing mechanical drawings is essential to verify pinout alignment and mounting hole patterns.
