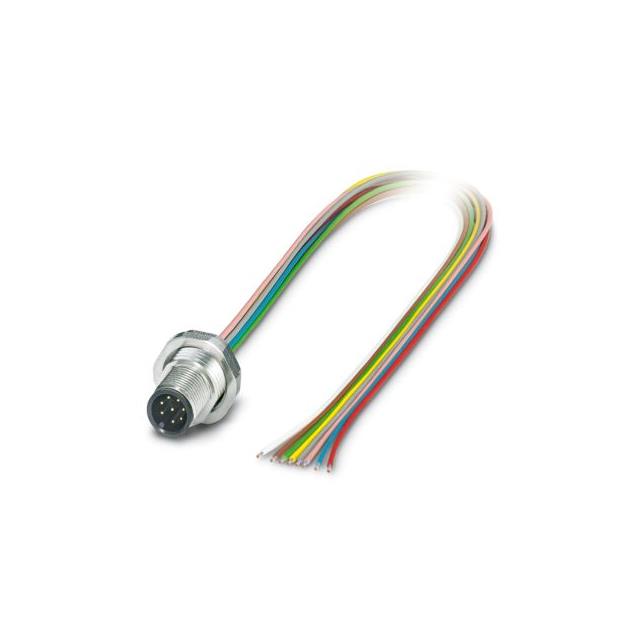

1240041

Overview

The Phoenix Contact CA-12P1N1290DNX is a M23 series cable-side circular connector designed for signal applications. It features a straight, shielded housing with standard screw locking and N coding. The component contains 12 male contacts utilizing solder cone connections. Technical specifications include a reference contact voltage of 48 V AC or 74 V DC, an impulse withstand voltage of 1.5 kV, and overvoltage category III. The insulation body is constructed from PBT, while contacts are CuZn with Ni/Au plating. It supports a cable diameter range of 3 mm to 14.5 mm and offers 100 mating cycles.

Feature Summary

• Shielded construction for signal integrity in industrial environments
• Solder cone termination method for secure wire attachment
• Standard screw locking mechanism compatible with SPEEDCON systems
• Lead-free composition compliant with RoHS II directives

Applications

• Industrial signal transmission systems
• Automation control panel wiring
• Sensor and actuator interconnections

Procurement Notes

This product is subject to planned obsolescence and should not be selected for new designs. Verify current availability status through official Phoenix Contact channels before procurement. Consult commercial representatives for approved alternative components suitable for modern projects. Ensure compliance with specific cable sealing requirements if using diameters between 3 mm and 4 mm.

Selection Notes

Select this connector when a straight, shielded M23 interface is required for signal lines. Confirm that the application utilizes standard rotation direction and N coding. Verify that the cable diameter falls within the specified 3 mm to 14.5 mm range. Ensure the environment supports the defined electrical ratings and mechanical durability limits.

Part Context

This component belongs to the Phoenix Contact CA series of circular connectors. It is part of the M23 family, which provides robust connection solutions for demanding industrial settings. The series emphasizes reliable signal transmission with standardized locking mechanisms and shielding options.

Replacement Considerations

Due to planned obsolescence, direct replacement may not be available. Contact Phoenix Contact sales for validated alternative part numbers that meet equivalent technical specifications.

FAQ

Is this connector compatible with SPEEDCON locking systems?

Yes, the standard locking mechanism is compatible with both standard and SPEEDCON systems.

What material is used for the contact surfaces?

The contacts are made of CuZn with a Ni/Au surface finish.
